Ventum Tunnel

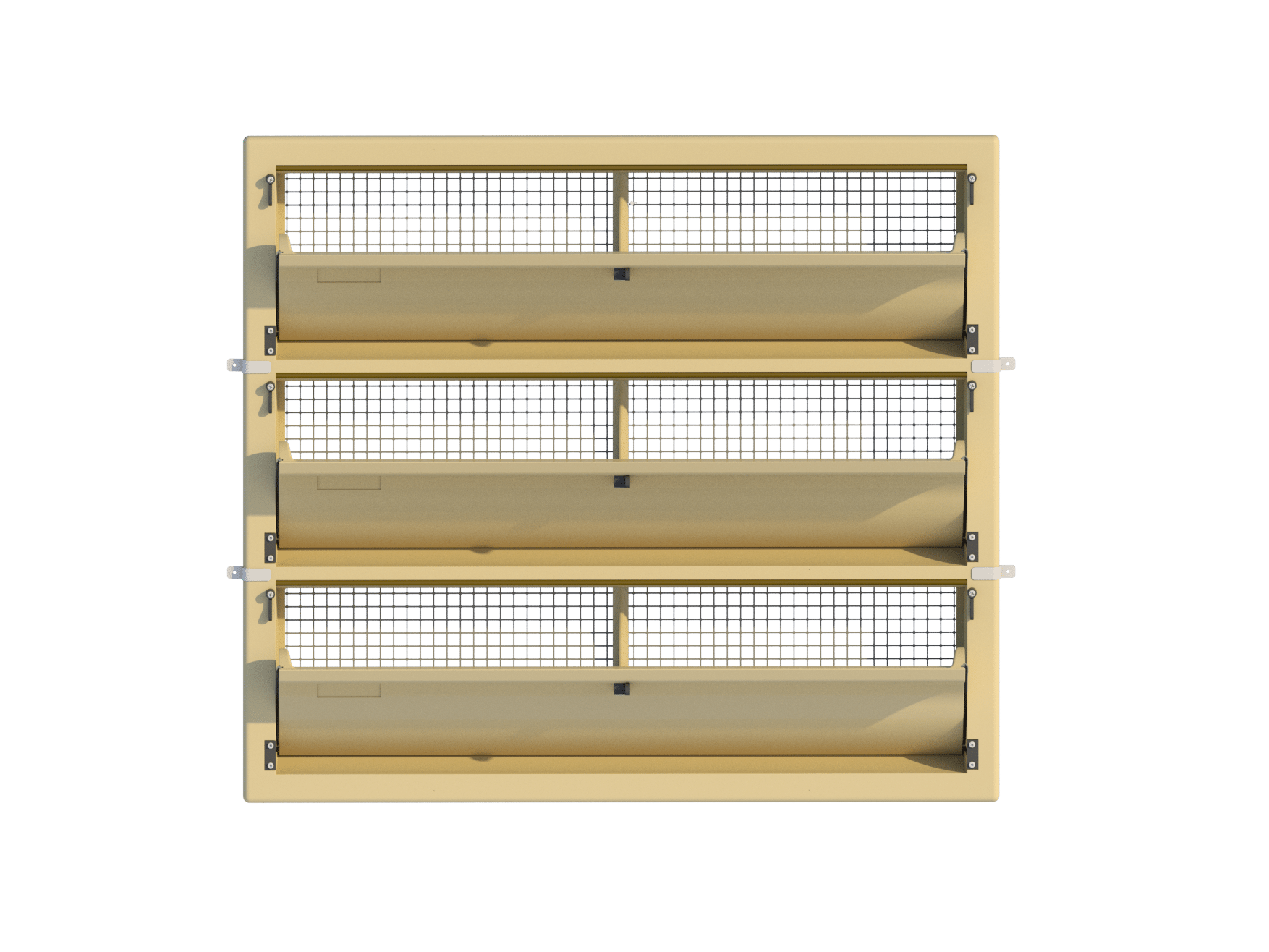

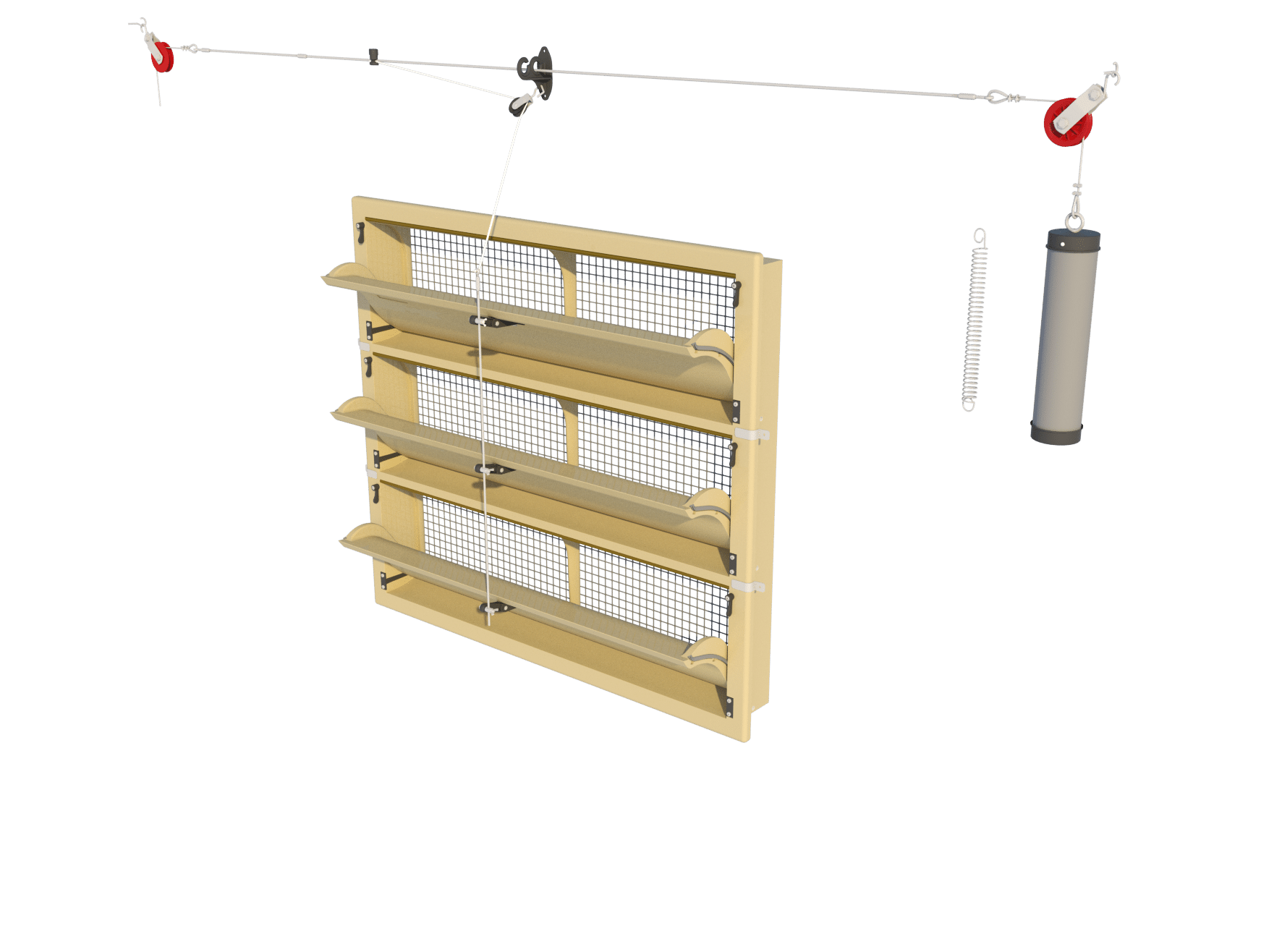

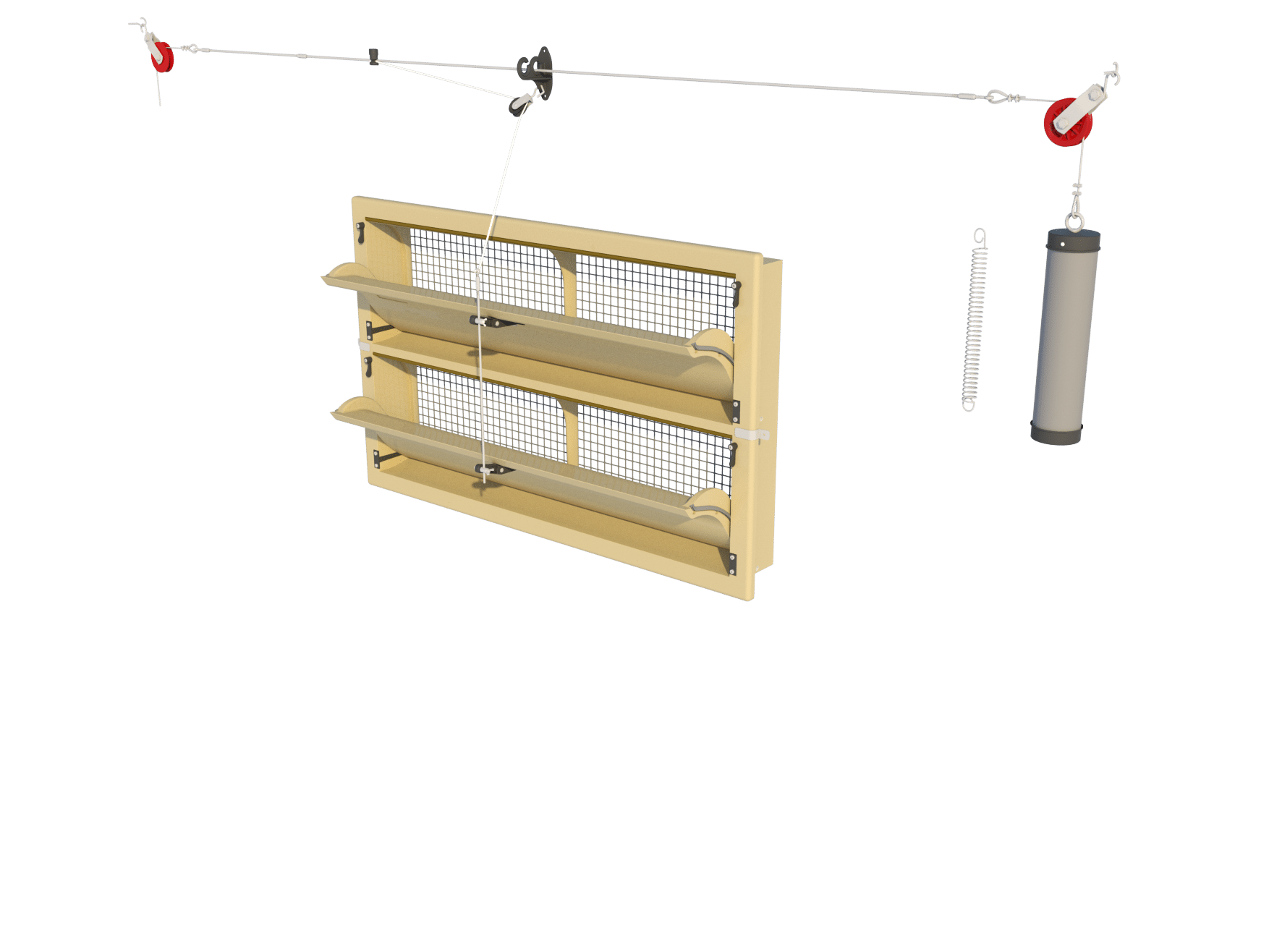

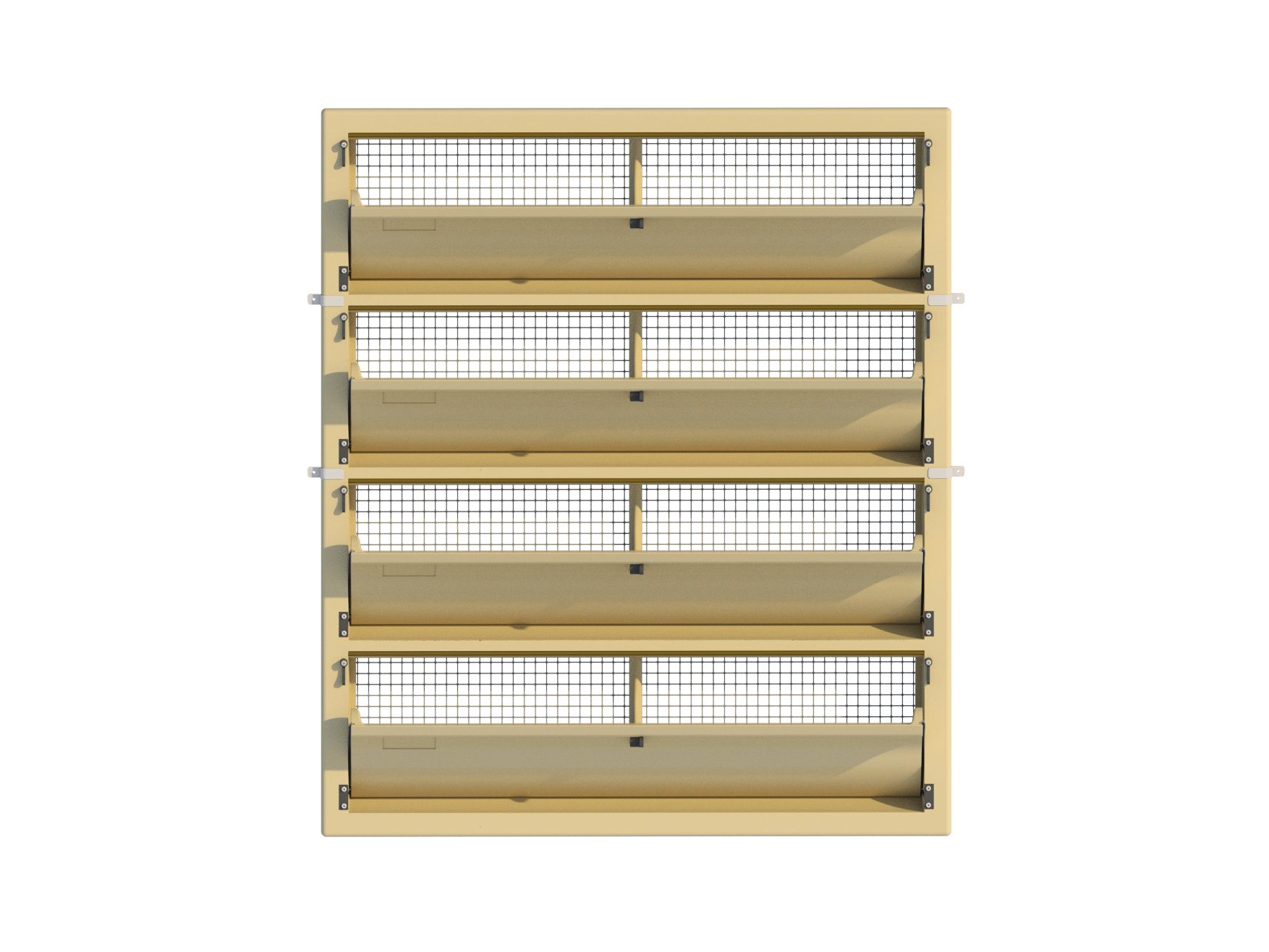

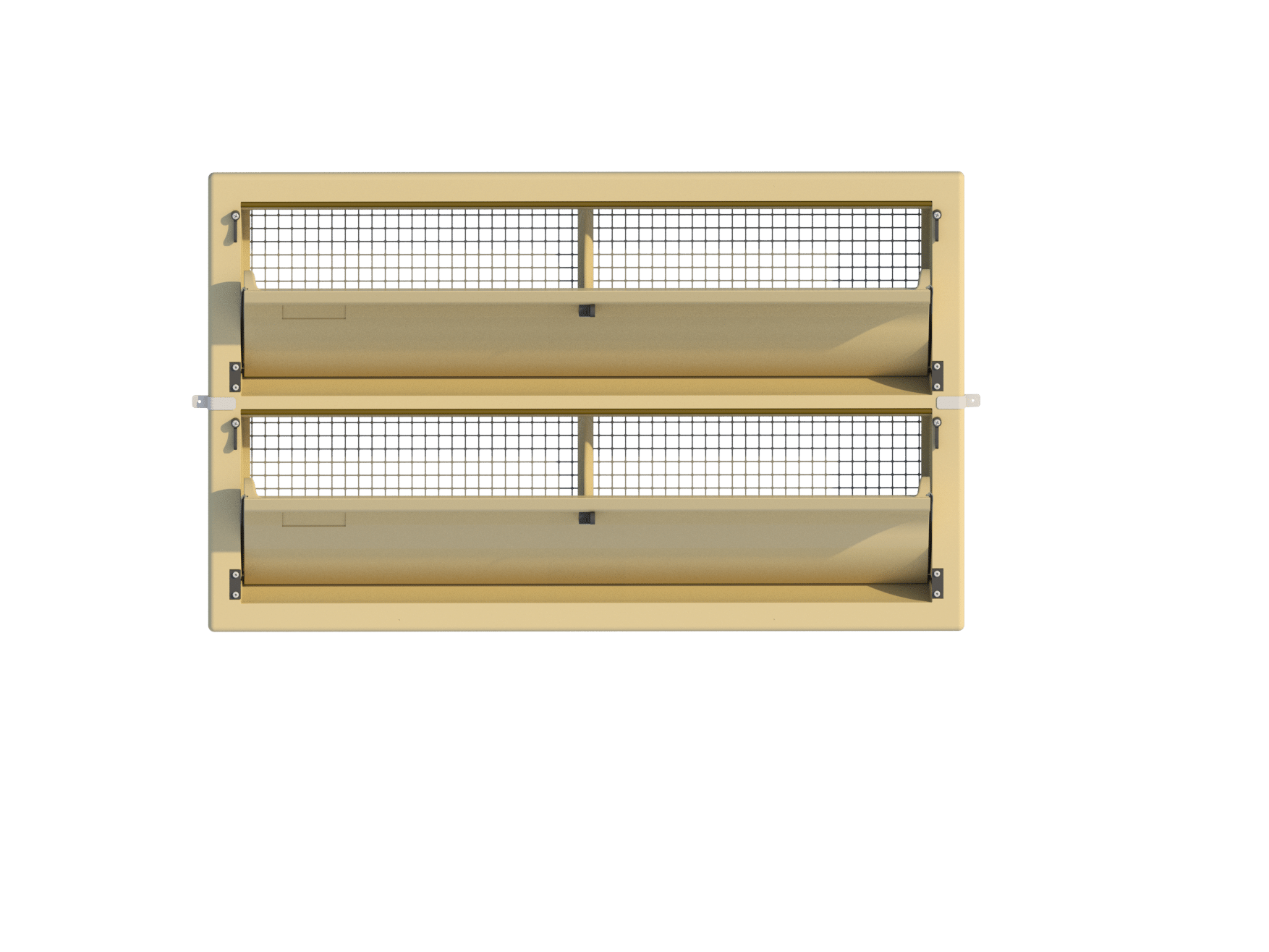

The Ventum Tunnel makes our unique air inlet features and technologies available for American buildings and ventilation concepts. The dimensions of the Ventum are more universal making it easily usable in renovation projects where existing inlets need replacement. This Ventum tunnel door has 2, 3 or 4 air inlets stacked on top of each other. It is suitable in most cases for poultry houses, as the curved inner valve helps to guide air downwards to the birds during maximum ventilation. The tunnel unit and frame of this inlet have wear-resistant air seals equipped all around to prevent air leakage. The curved aerodynamic inner corners of the frame help to optimize air intake. Our unique polyurethane formula and the use of air seals assures optimum insulation, making the Ventum Tunnel ideal for extremely low temperatures.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
Ventum Tunnel 2 | 6960 | 9800 | 13.900 |
Ventum Tunnel 3 | 10.440 | 14.700 | 20.850 |
Ventum Tunnel 4 | 13.920 | 19.600 | 27.800 |
Product information:
Model | Ventum Tunnel 2 |
|---|---|
Run | 40 cm / 15.7 Inch |
Force | 6 kg / 59 Newton |
Number / pallet | 19 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 14.4 kg / 31.7 Lbs |
Model | Ventum Tunnel 3 |
|---|---|
Run | 40 cm / 15.7 Inch |
Force | 9 kg / 88 Newton |
Number / pallet | 12 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 14.4 kg / 31.7 Lbs |
Model | Ventum Tunnel 4 |
|---|---|
Run | 40 cm / 15.7 Inch |
Force | 12 kg / 118 Newton |
Number / pallet | 9 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 19.2 kg / 42.3 Lbs |
