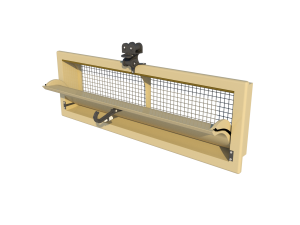

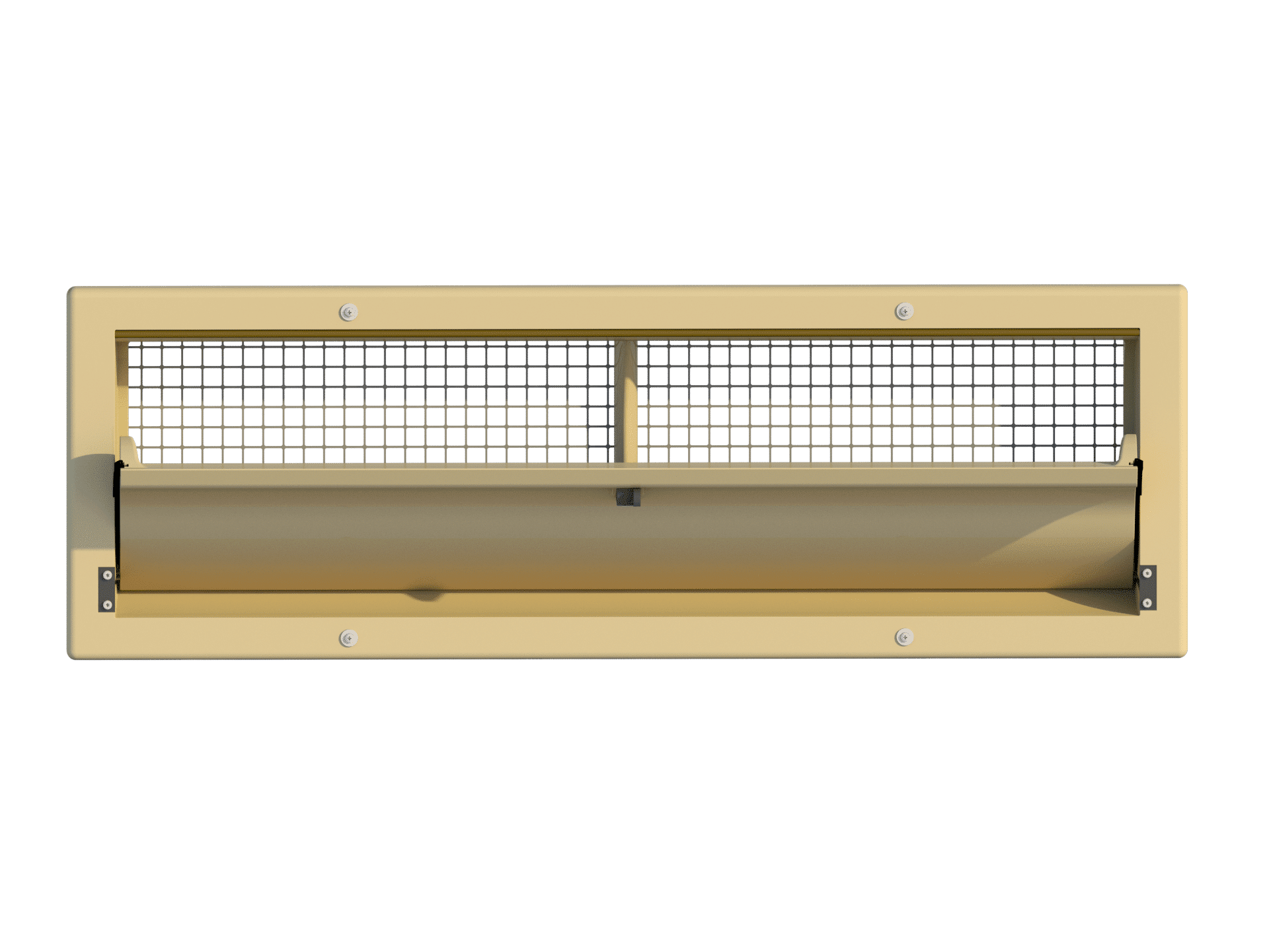

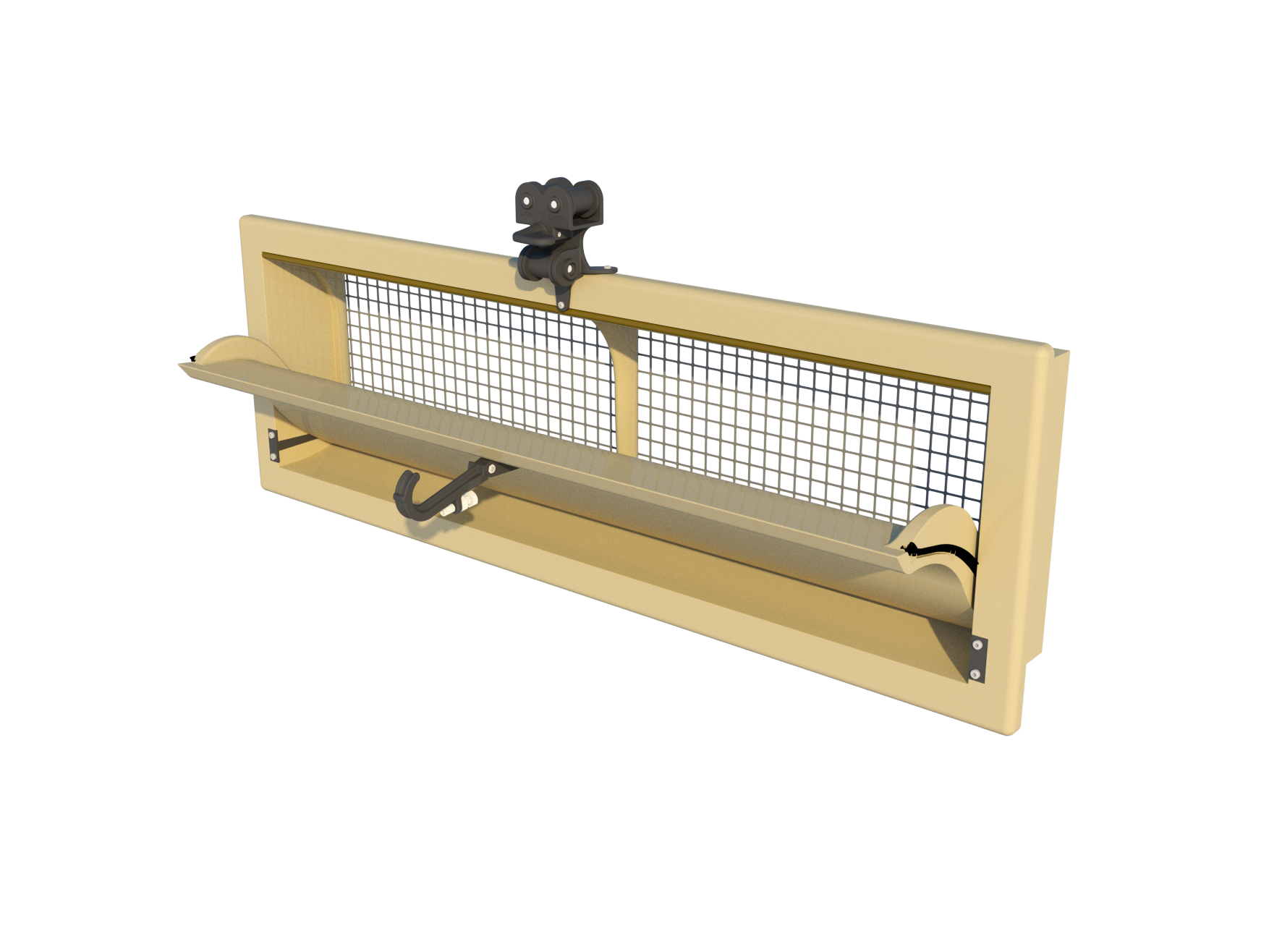

Ventum Air Inlet
This inlet is developed to make our unique air inlet features and technologies available for American building and ventilation concepts. The dimensions of the Ventum are more universal making it easily usable in renovation projects where existing inlets need replacement. This inlet is suitable mostly for poultry houses since the curved inner valve helps to guide air downwards to the birds during maximum ventilation. The valve and frame of this inlet is equipped with wear resistant stripping all around to prevent air leakage and the curved inner corners of the frame help to optimize air intake. Our unique polyurethane formula and the use of air seals assures optimum insulation making the inlet ideal for extremely low temperatures.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
Ventum | 3480 | 4900 | 6950 |
Product information:
Run | 47 cm / 18.5 Inch |
Force | 3 kg / 29.4 Newton |
Number / pallet | 48 (1.30 x 1.00 x 2.40 m) |
Weight / per inlet | 4.8 kg / 10.6 Lbs |
Volume / per box | 24 |
