6000-VFR-C Air Inlet

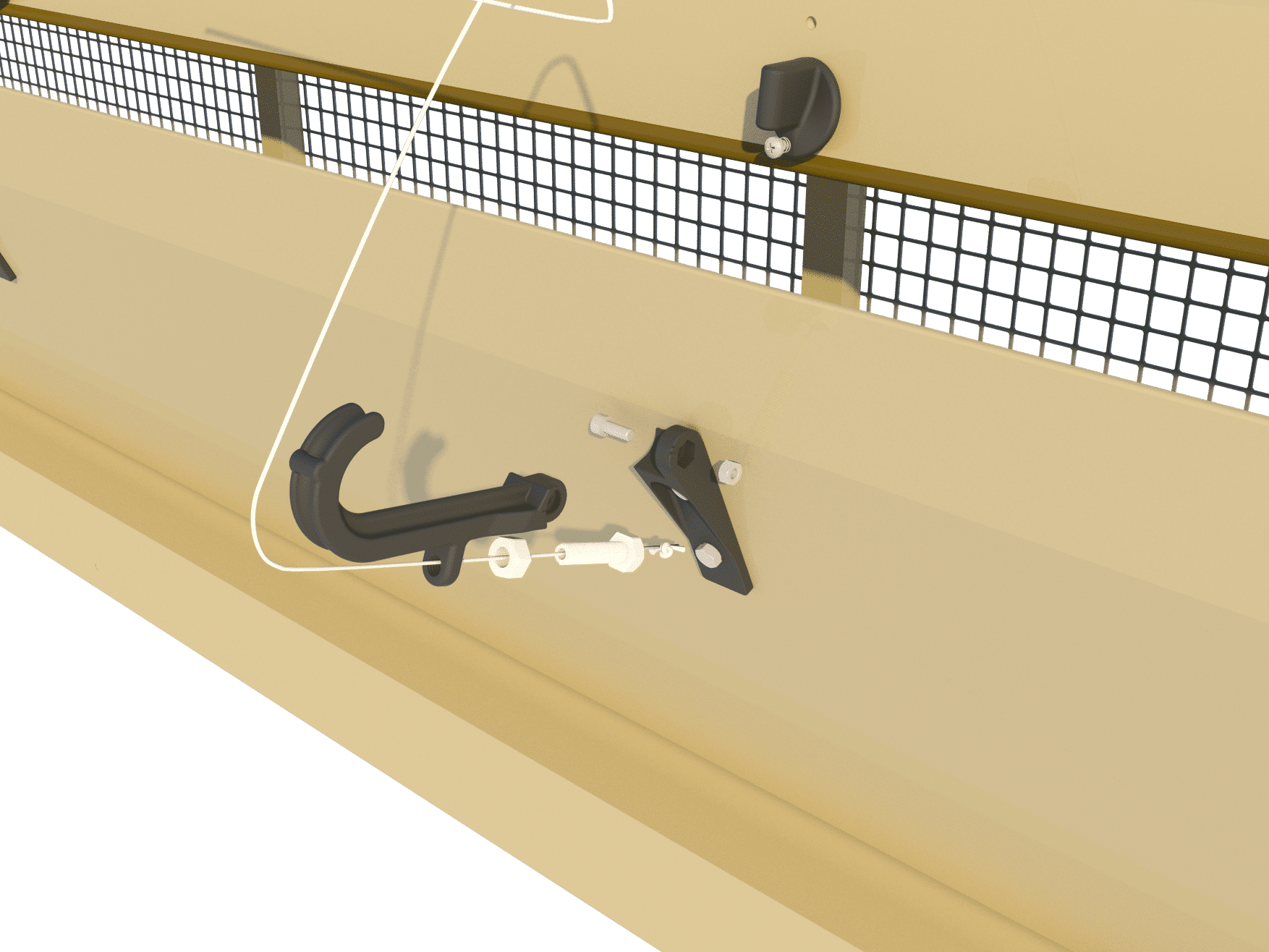

This inlet is by far our biggest wall inlet in the familiar rectangular shape. This inlet is controlled by two plastic arms to offer maximum control and precision. This inlet is designed with the option to combine multiple inlets into a complete tunnel unit. This version is equipped with a straight inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
6000-Series | 5800 | 8750 | 11600 |
Product information:
Run | 47 cm / 18.5 Inch |
Force | 3.5 kg / 34.3 Newton |
Number / pallet | 20 (1.65 x 1.05 x 2.40 m) |
Weight / per inlet | 10.8 kg / 23.8 Lbs |
Volume / per box | 4 |
