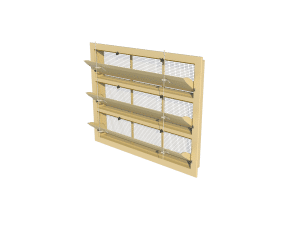

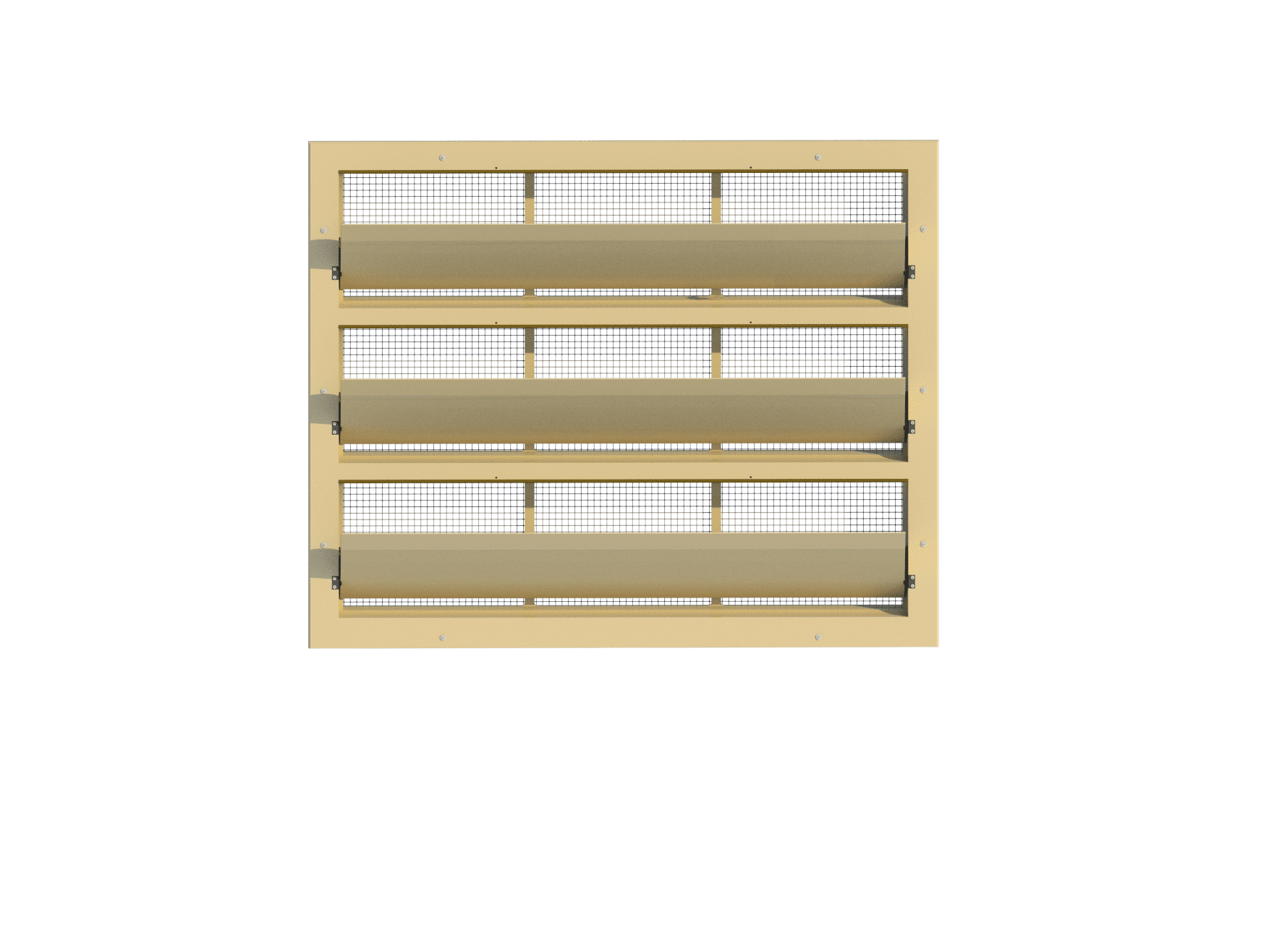

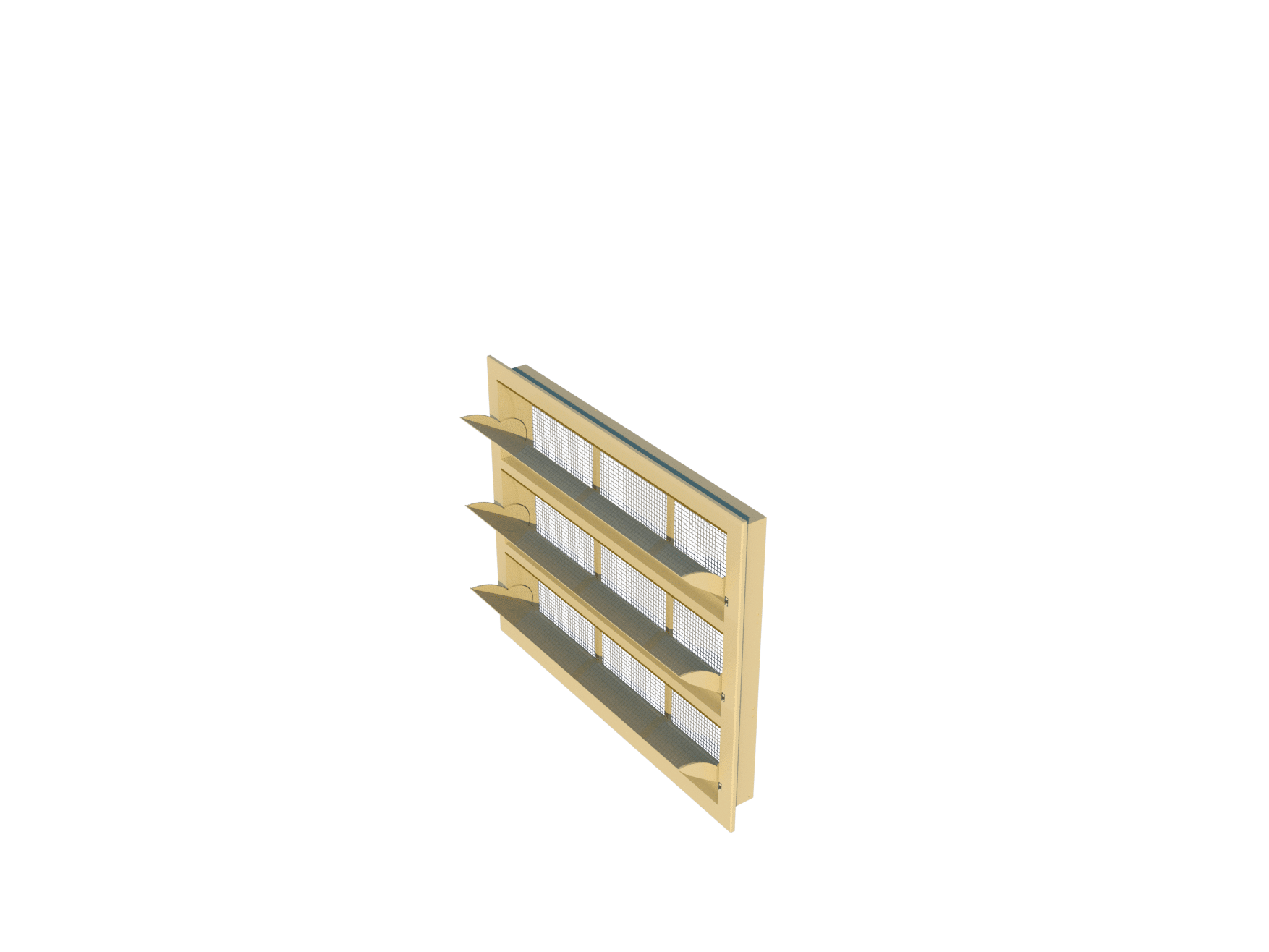

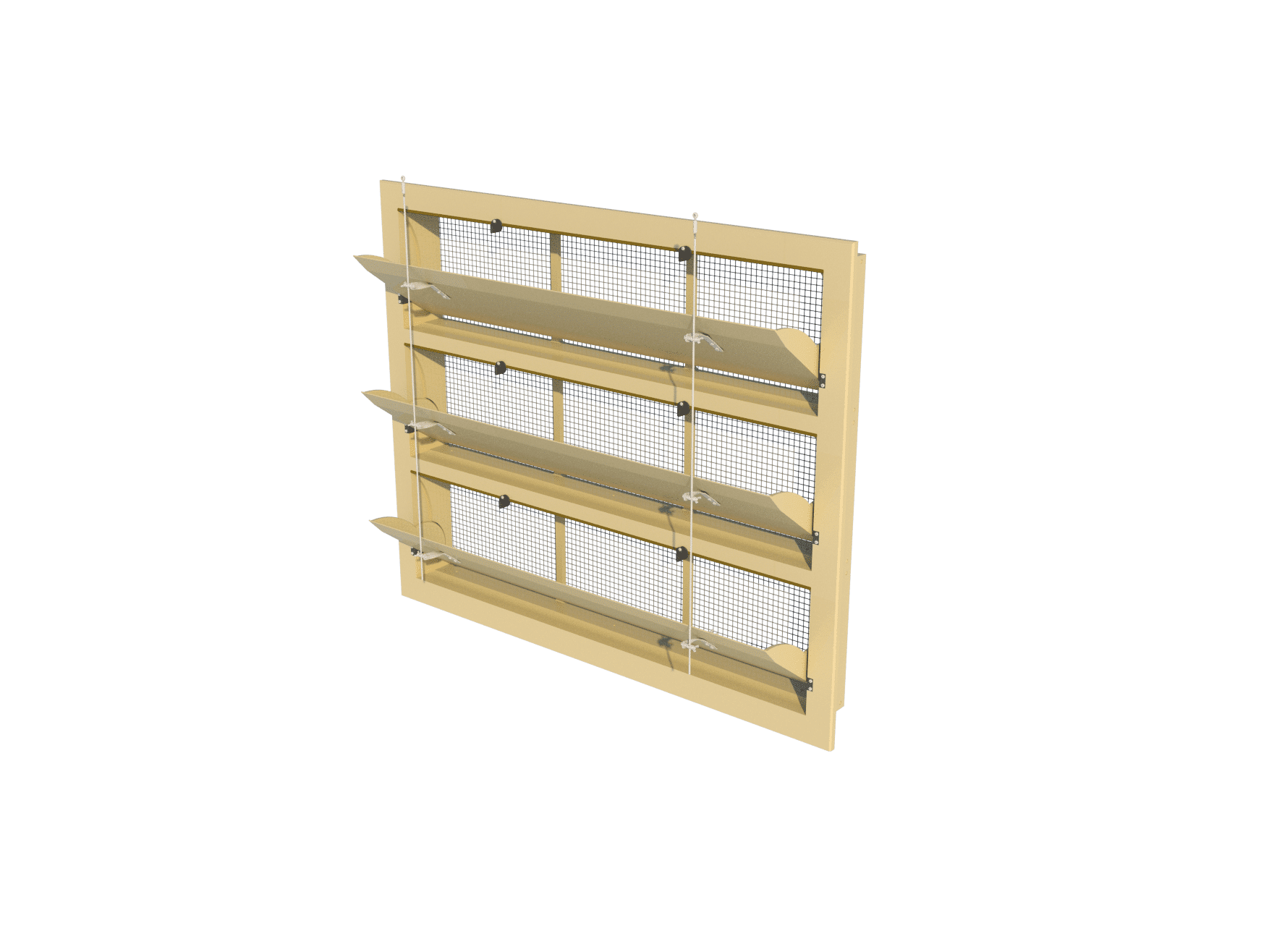

6000-VFR-3-C Tunnel Unit

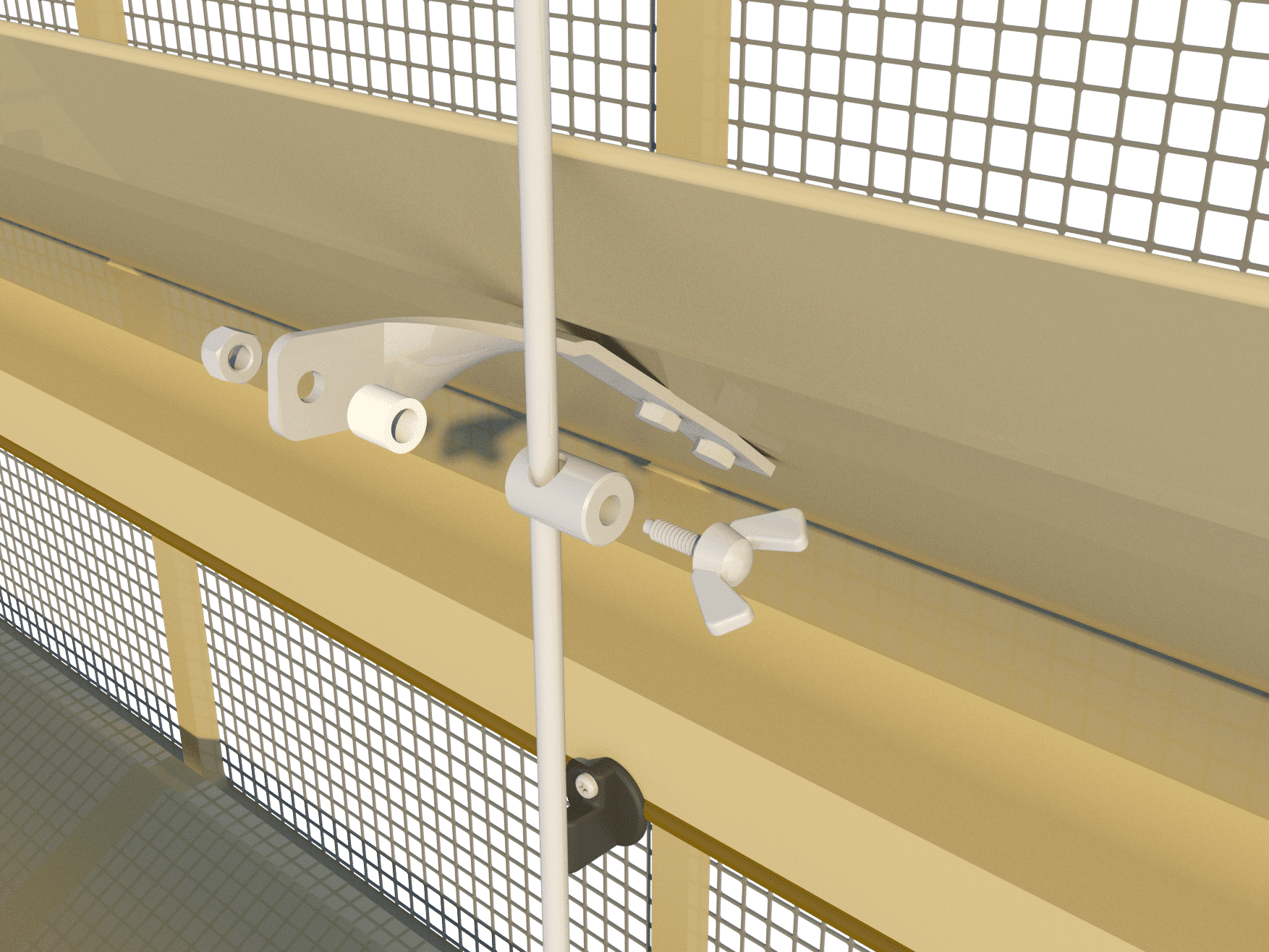

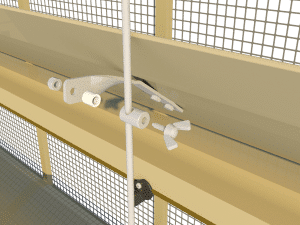

This tunnel unit is built up out of three single 6000-VFR inlets. This version is equipped with a straight inner valve that guides the air upwards during minimum ventilation. After opening further than 35% the air will also flow underneath the inner valve. This unit is controlled by two central arms per valve, which in turn, are connected with the other inner valves.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
6000-3 Series | 17400 | 26250 | 34800 |
Product information:
Run | 40 cm / 15.7 Inch |
Force | 10.5 kg / 103 Newton |
Number / pallet | 5 (1.65 x 1.05 x 2.40 m) |
Weight / per inlet | 31.9 kg / 70.3 Lbs |
Volume / per box | 1 |
