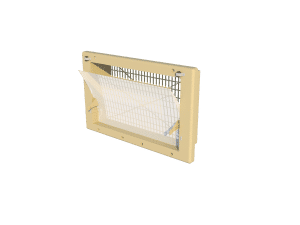

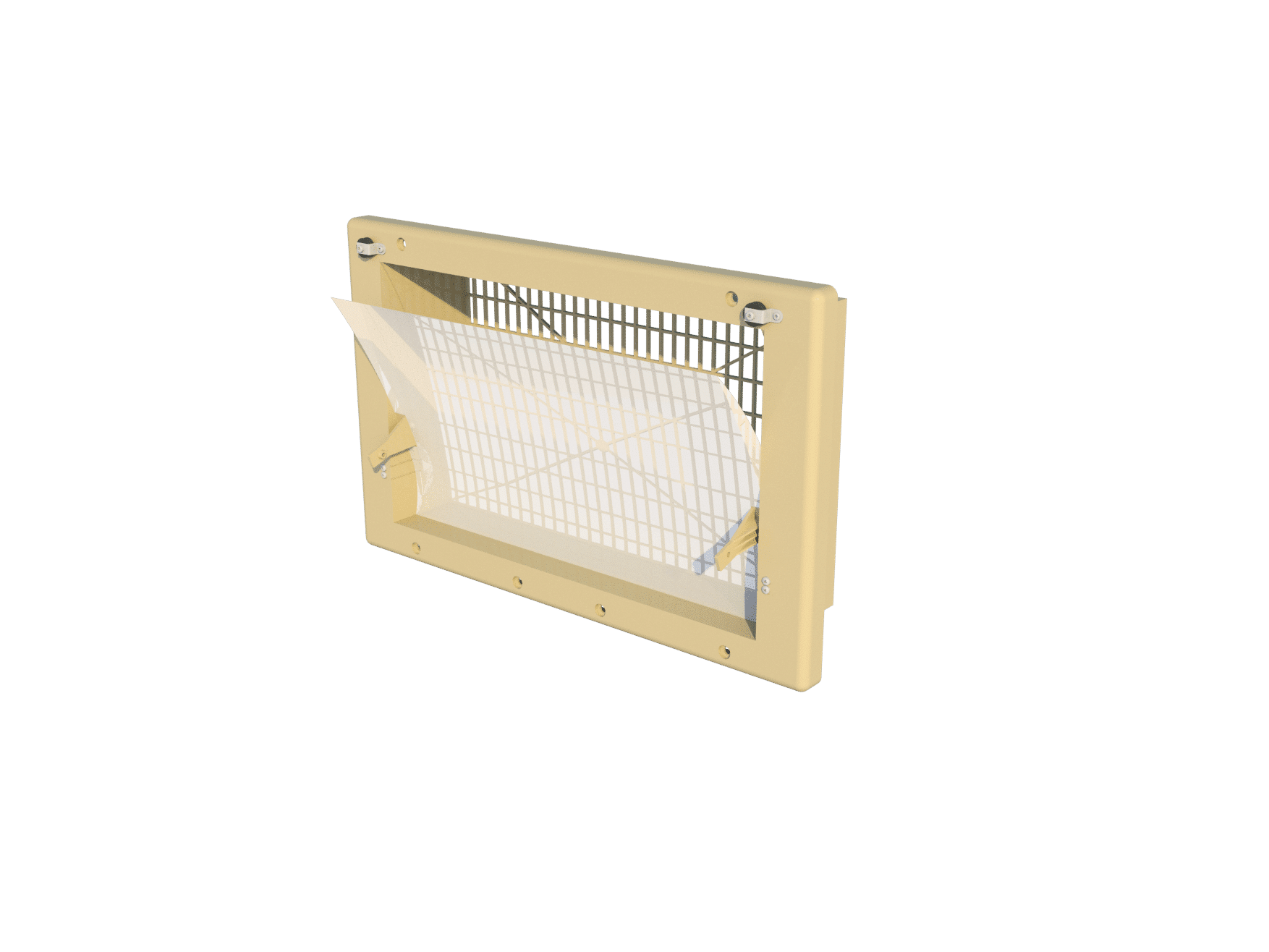

2500-PVFT Air Inlet

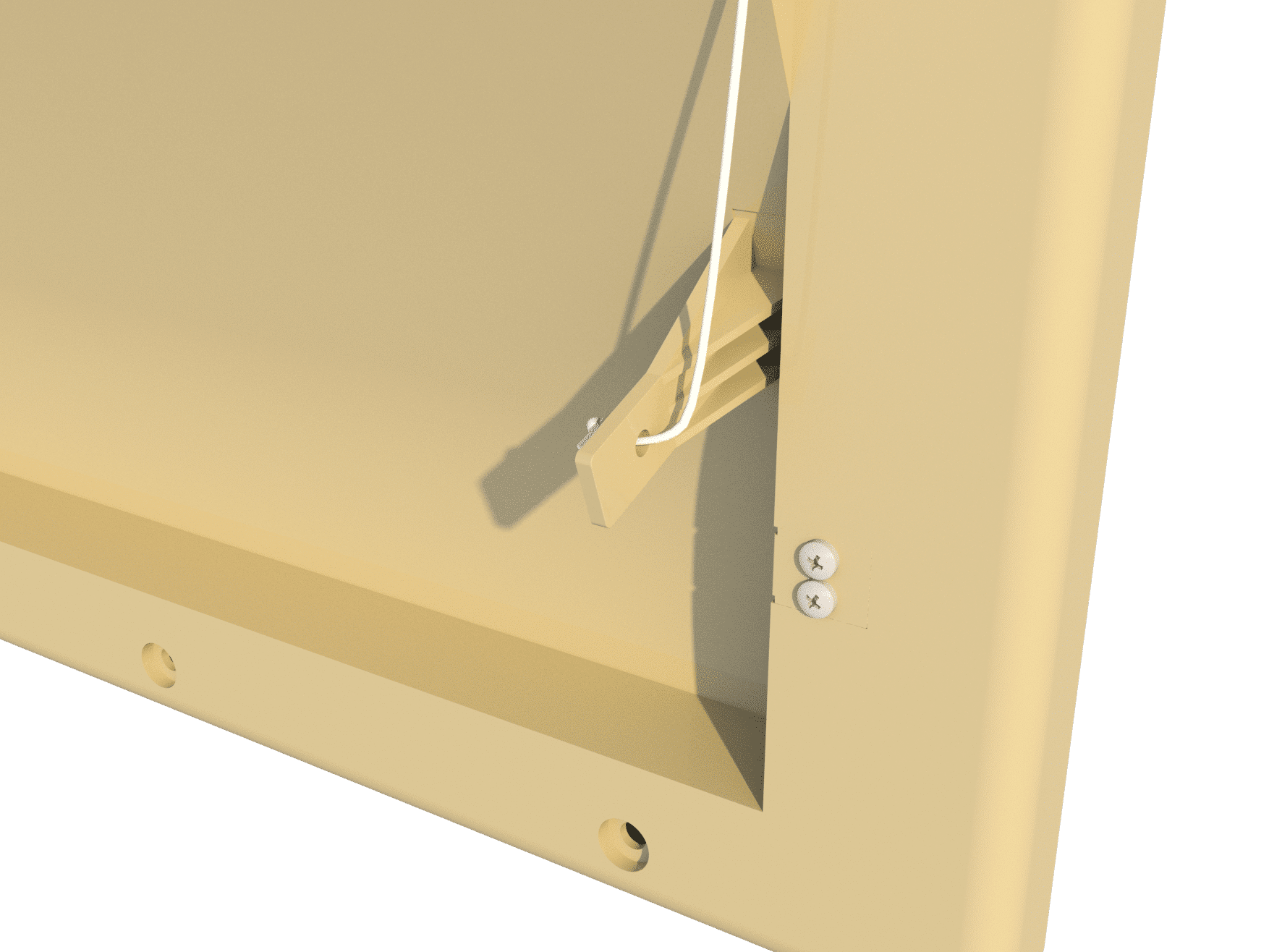

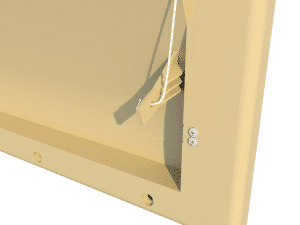

As an exception to our program this air inlet valve is not made out of polyurethane but out of polypropylene. This air inlet is especially useful in areas where insulation is less relevant. With a slightly curved inner valve, which is middle hinged, air is also guide downwards to the animals during maximum ventilation. This version of the 2500-PVF inlet is executed with a transparent inner valve allowing natural daylight to enter the house.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
2500-Series | 2500 | 3750 | 5000 |
Product information:
Run | 15 cm / 5.9 Inch |
Force | 3.5 kg / 34.3 Newton |
Number / pallet | 36 (1.20 x 1.00 x 2.40 m) |
Weight / per inlet | 4.2 kg / 9.3 Lbs |
Volume / per box | 12 |
