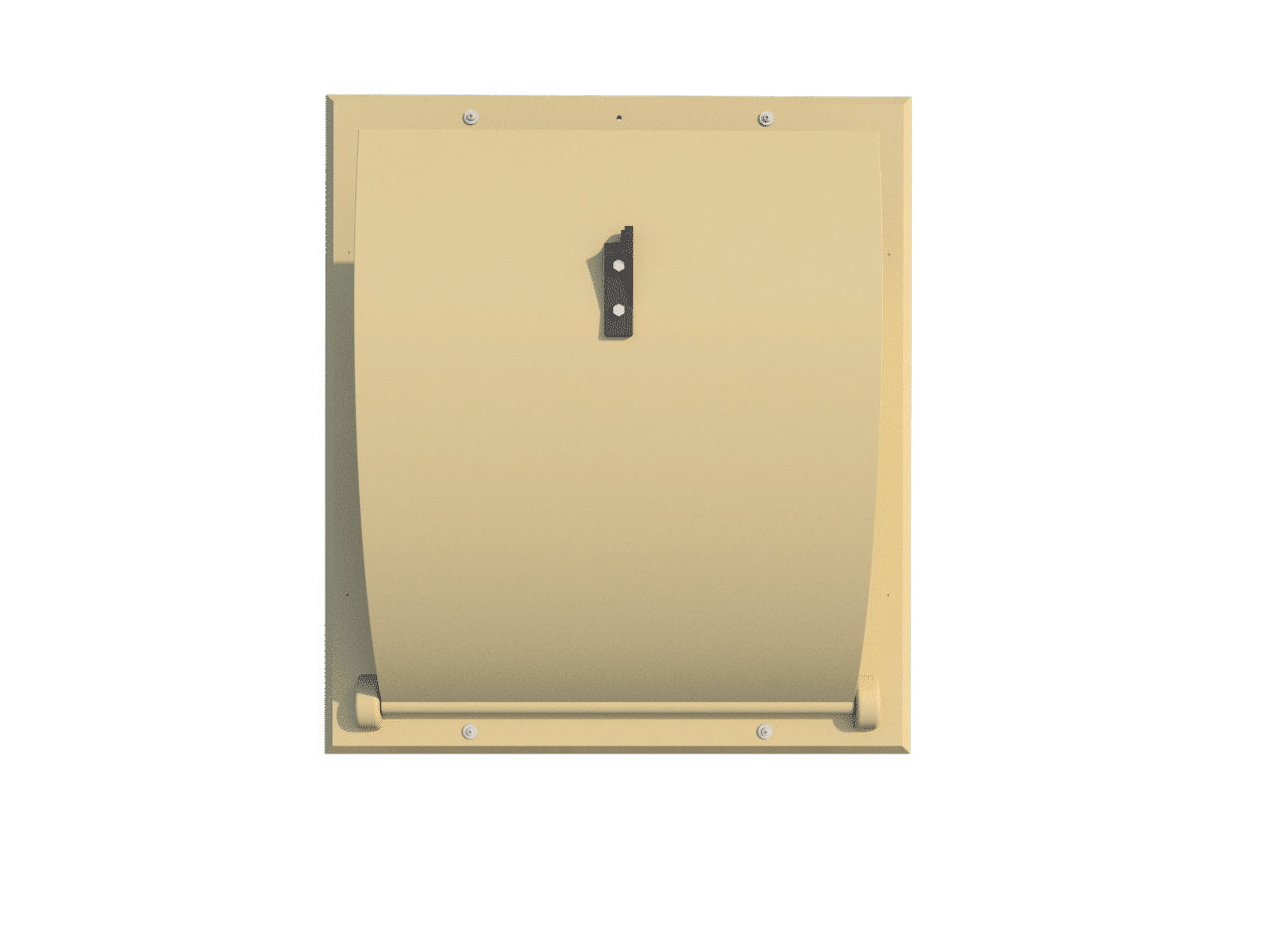

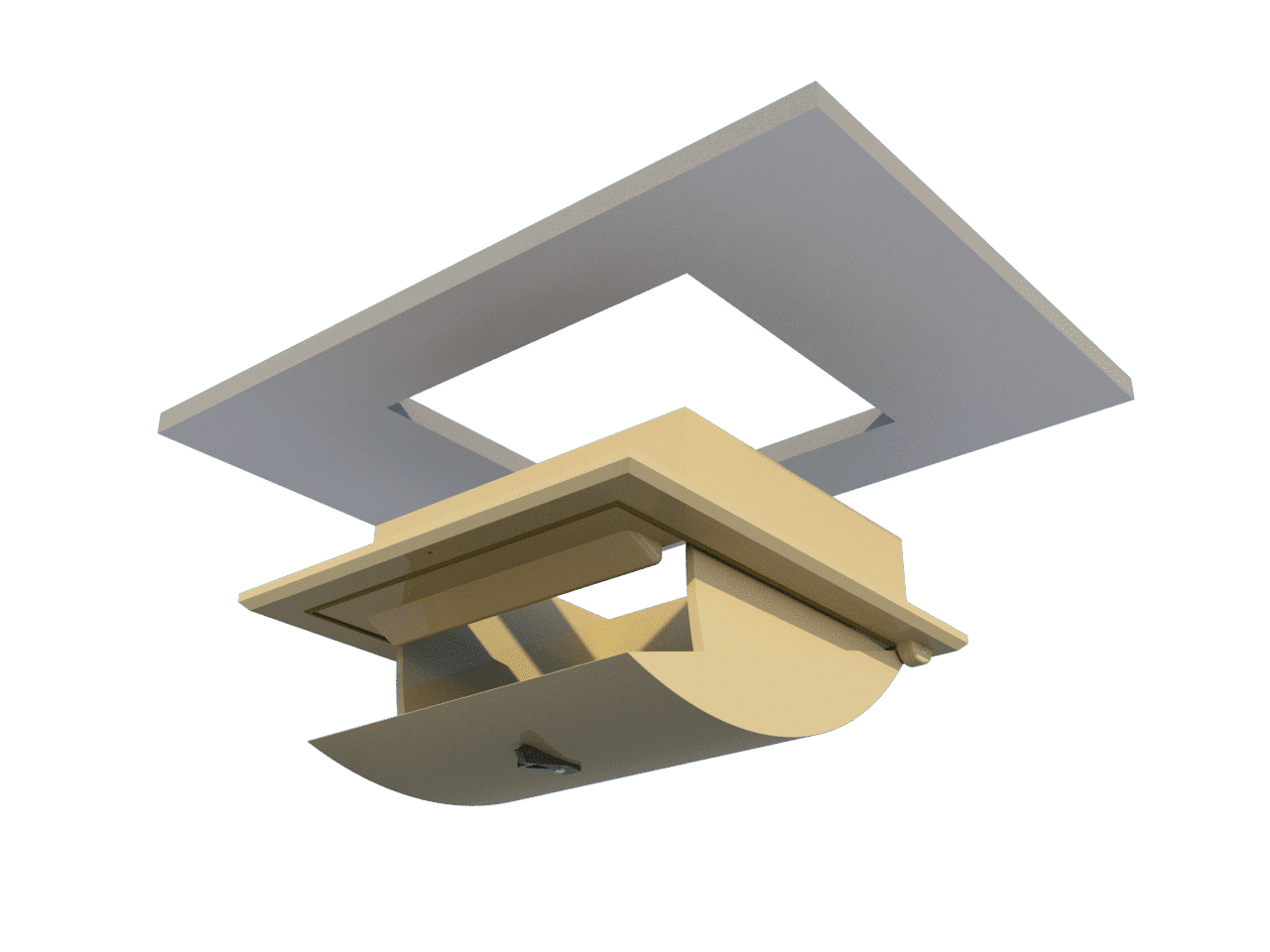

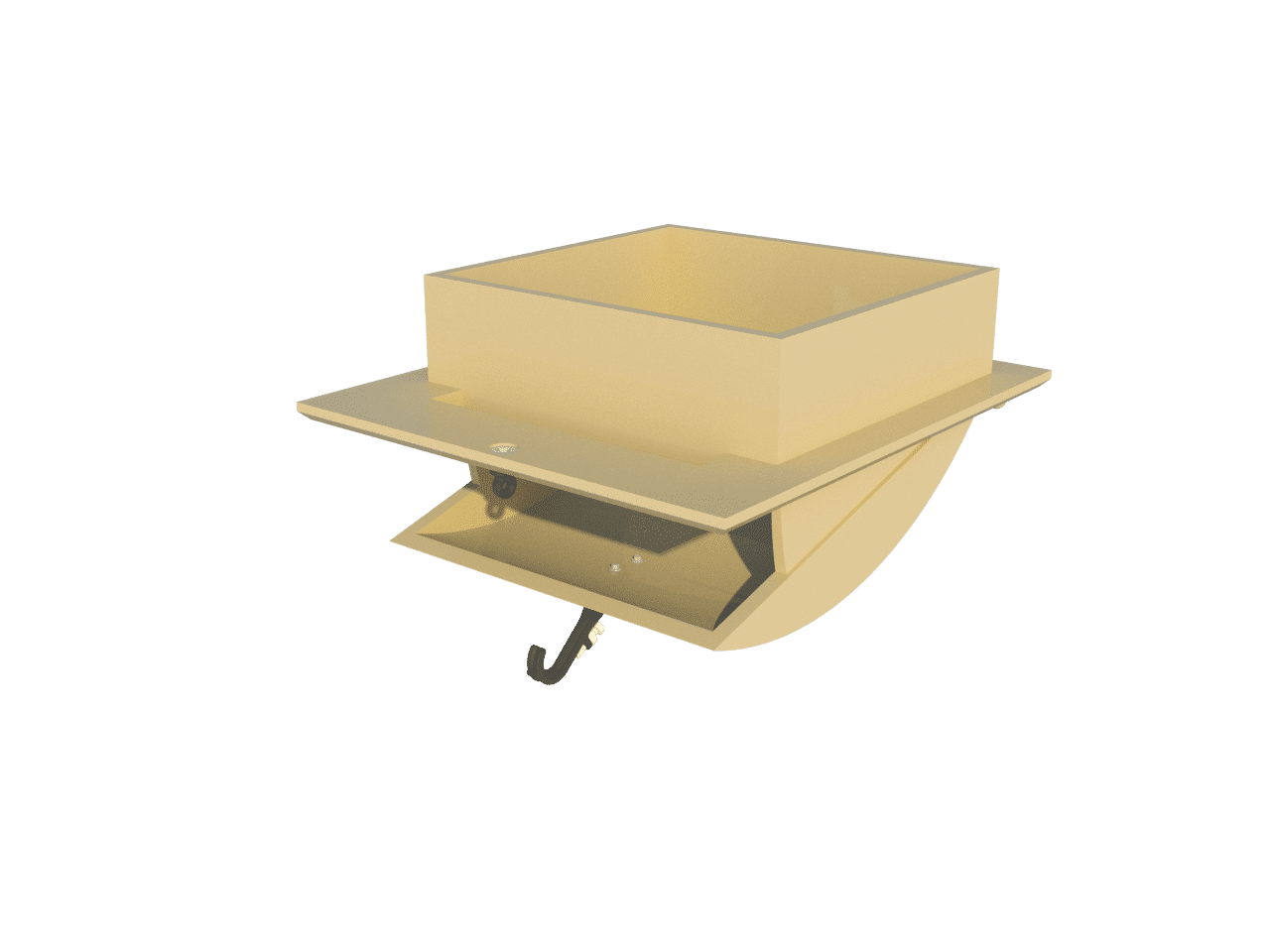

180-P-C Ceiling Inlet

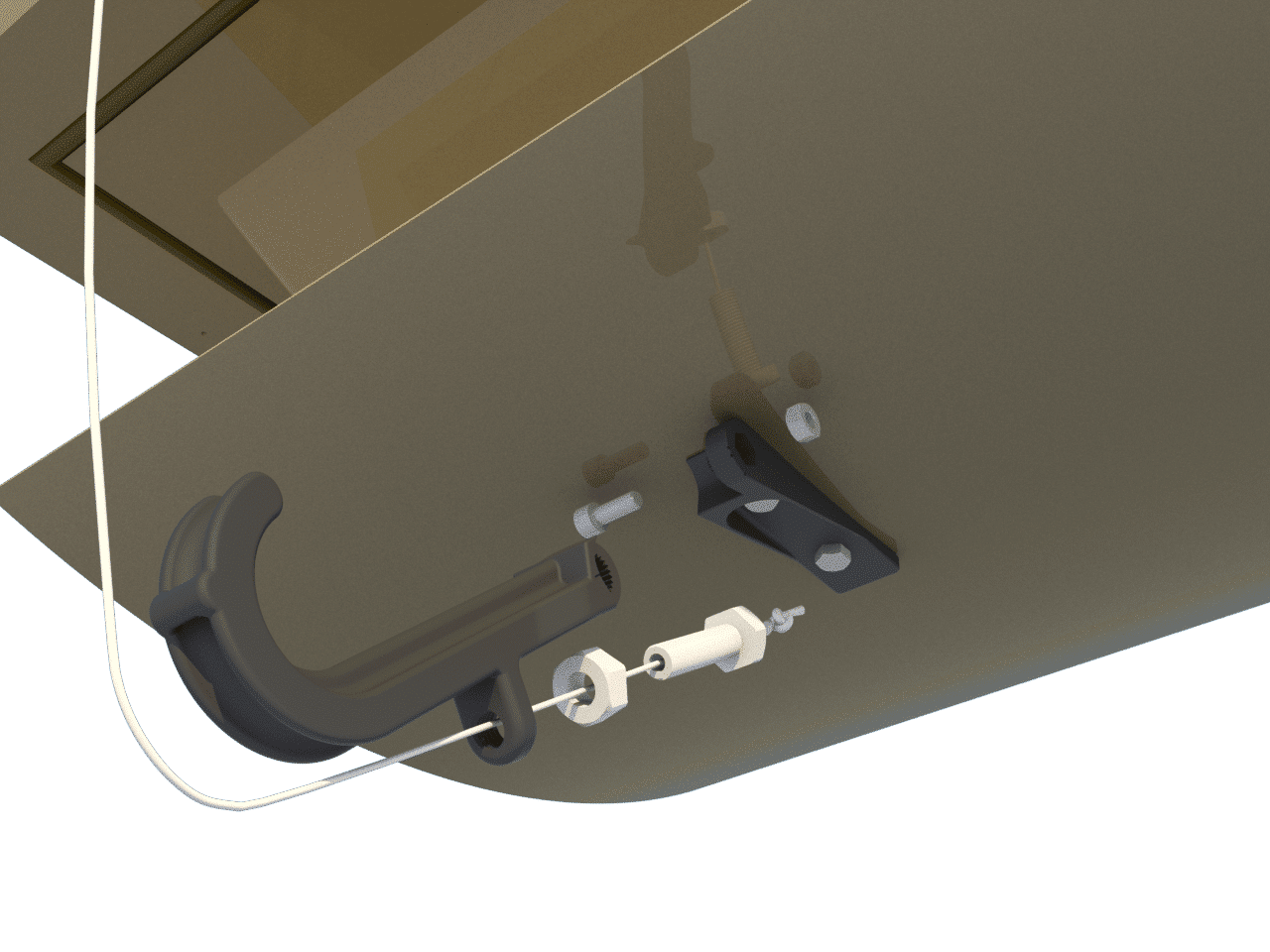

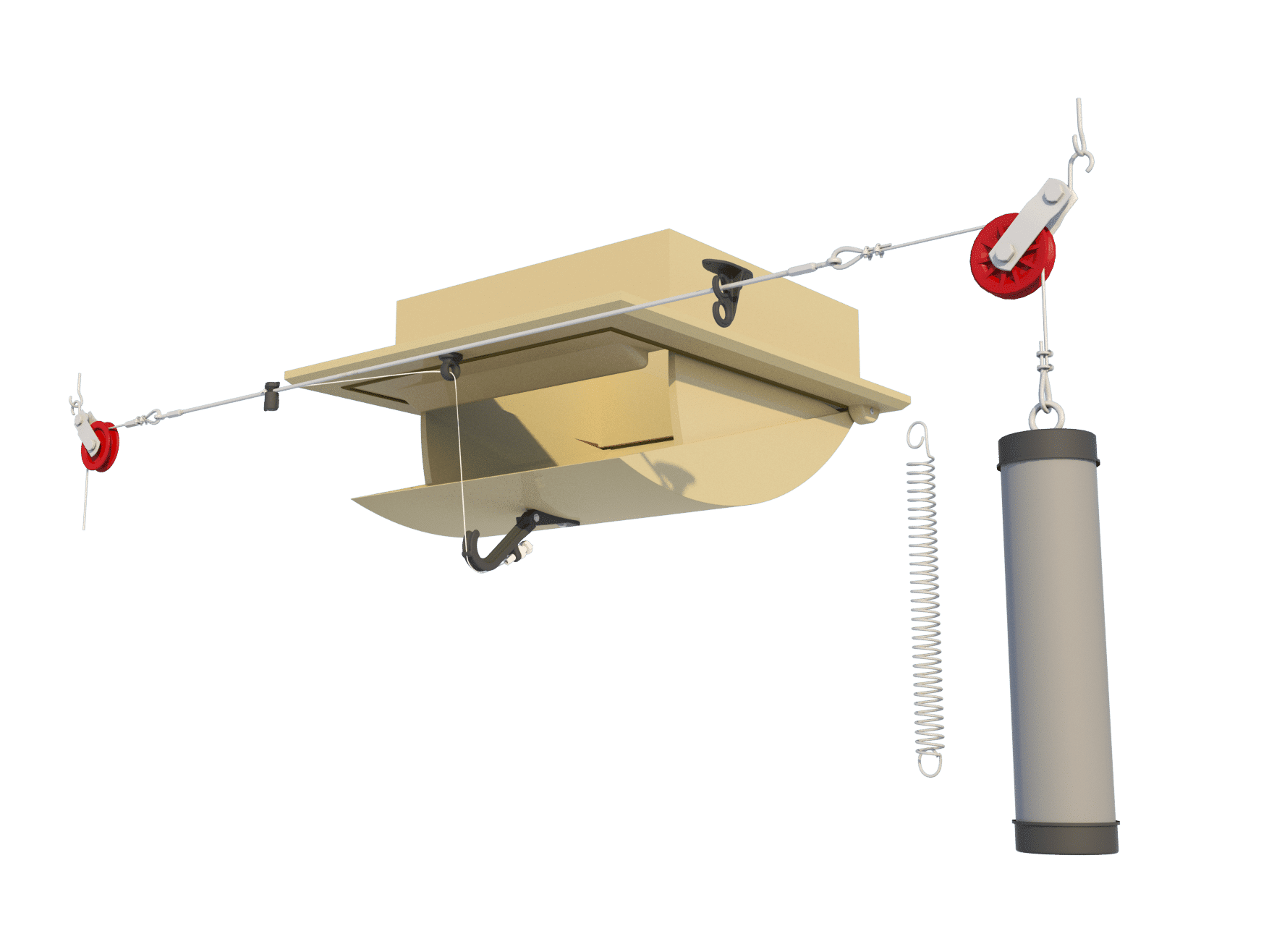

This large ceiling inlet is specially designed for installation in ceilings. The inlet is used to bring air from the attic into the house. Working with ceiling inlets, in turn, helps preheat the incoming air temperature. The inlet is controlled through a central plastic arm. The inlet features the TPI designed ridge that guides the airflow along the ceiling for a higher distance.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
180-P-C | 1800 | 2550 | 3600 |
Product information:
Run | 28 cm / 11 Inch |
Force | 2 kg / 19.6 Newton |
Number / pallet | 20 (1.20 x 1.00 x 2.40 m) |
Weight / per inlet | 3 kg / 6.6 Lbs |
Volume / per box | 10 |
