145-VFRD Air Inlet

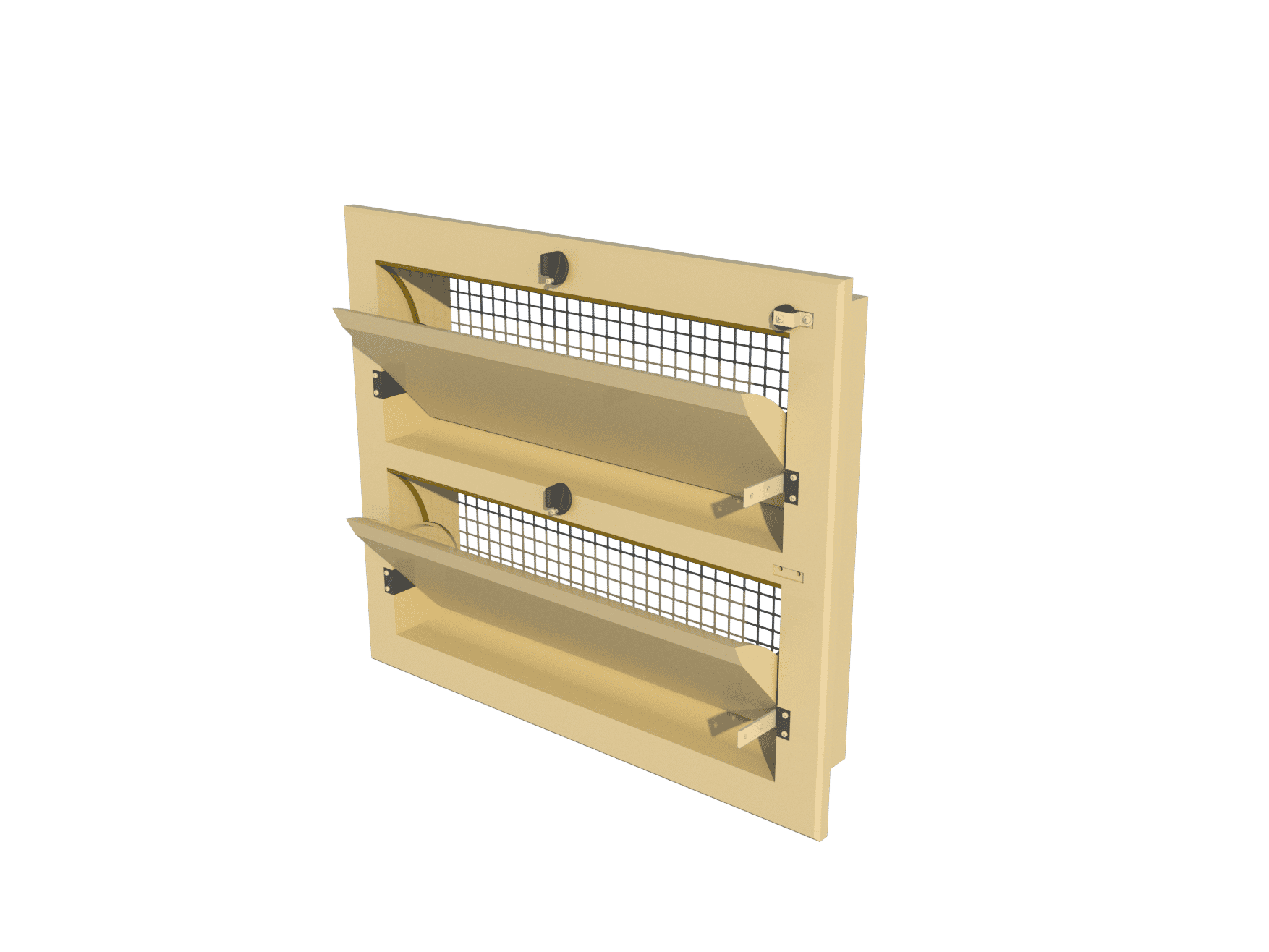

The 145-VFRD Tunnel Unit is a premium air inlet solution meticulously engineered for poultry and pig farming environments. This advanced system comprises two model 145 inlets stacked vertically, featuring dual middle-hinged inner valves that ensure optimal air distribution. When opened beyond 35%, air flows both above and below the valves, promoting a balanced and healthy indoor climate.
Key Features:
- Enhanced Airflow Control: The straight inner flaps of the 145-VFRD Tunnel Unit are designed to prevent air from being directed downward toward the animals, even at maximum ventilation. This design maintains animal comfort and well-being.

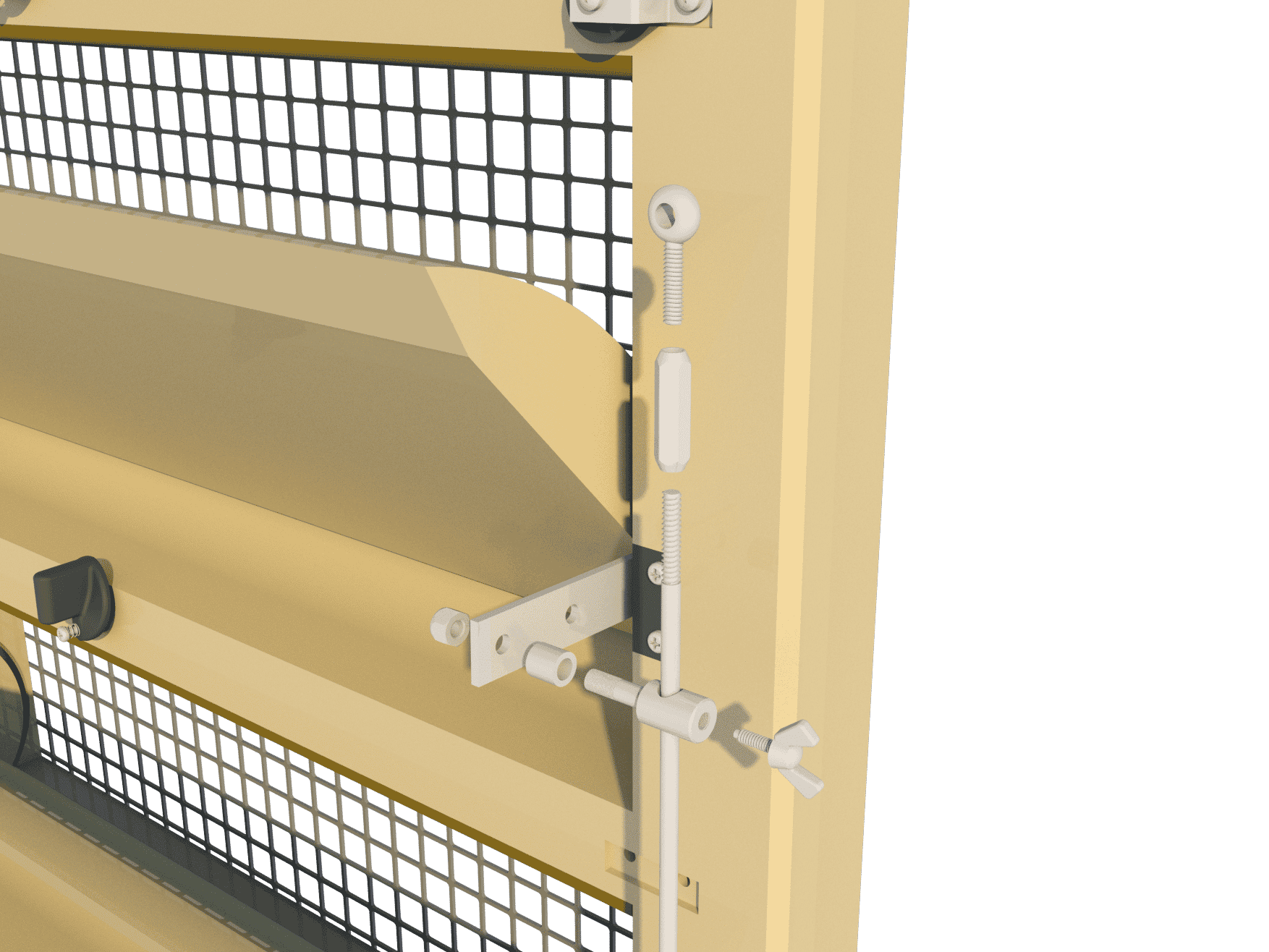

- Robust Construction: Equipped with stainless steel side arms and connecting rods. Made from insulating polyurethane, the 145-VFRD ensures durability and longevity, making it a reliable choice for demanding agricultural settings.
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
145-Double-Series | 2900 | 4100 | 4800 |
Product information:
Run | 13 cm / 5.1 Inch |
Force | 4 kg / 39.2 Newton |
Number / pallet | 28 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 3.88 kg / 8.54 Lbs |
Volume / per box | 14 |
The 145-VFRD Tunnel Unit is also available in a self-closing version, providing flexibility to meet diverse ventilation needs. By integrating this air inlet into your facility, you can achieve superior climate control, enhancing animal health and productivity.
For more information or to discuss how the 145-VFRD can benefit your operations, please contact us at +31 (0)73 6569194 or email info@tpi-polytechniek.com.
