145-VFR Air Inlet

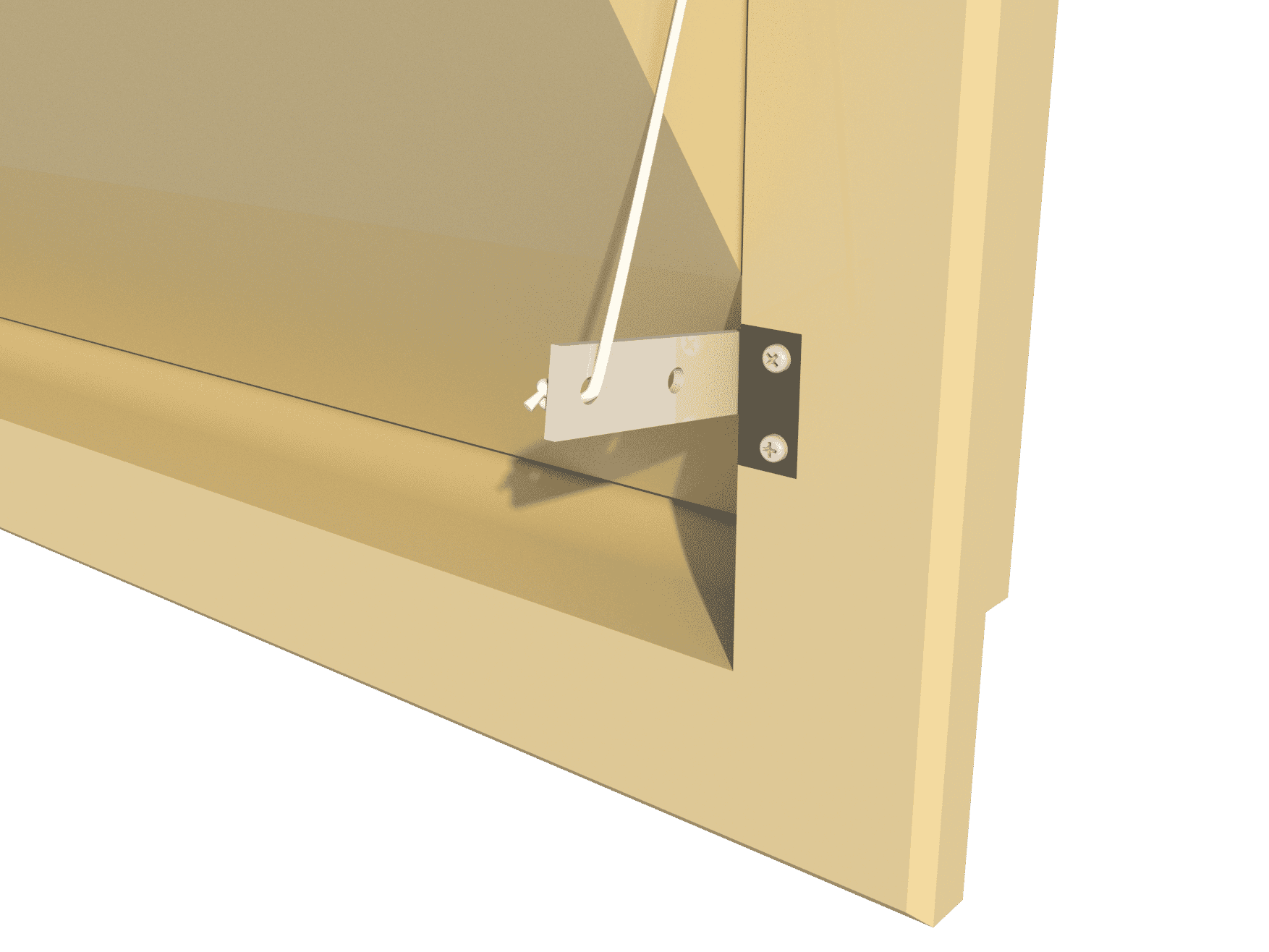

This air inlet valve is suitable for almost all applications. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a stainless steel side arm. This inlet is executed with a straight inner valve so even when it is opened for maximum ventilation air is not guided downwards to the animals. (also available in self-closing version)
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
145-Series | 1450 | 2050 | 2900 |
Product information:
Run | 13 cm / 5.1 Inch |
Force | 2 kg / 19.6 Newton |
Number / pallet | 52 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 1.93 kg / 4.25 Lbs |
Volume / per box | 26 |
