145-VFGT Air Inlet

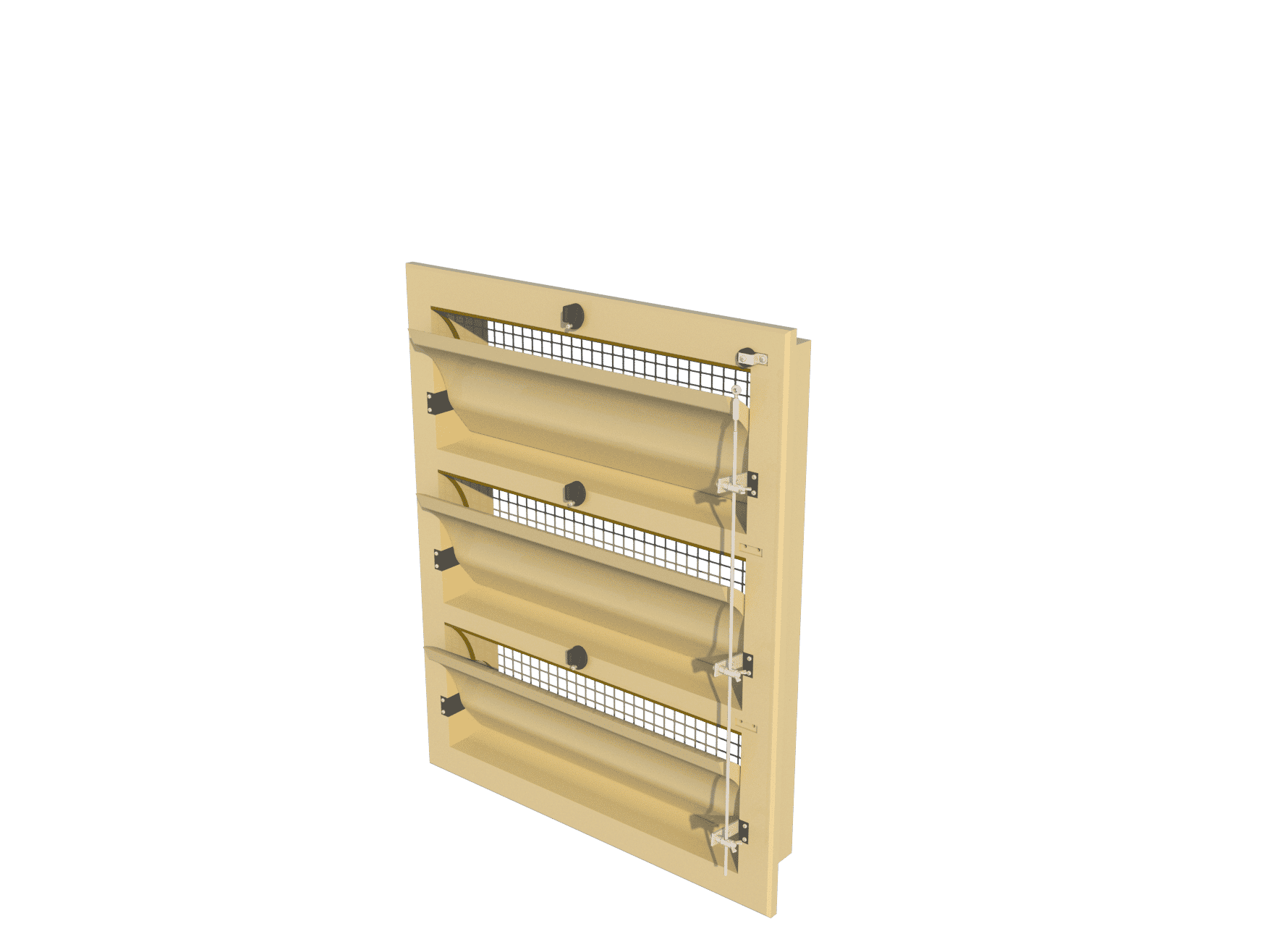

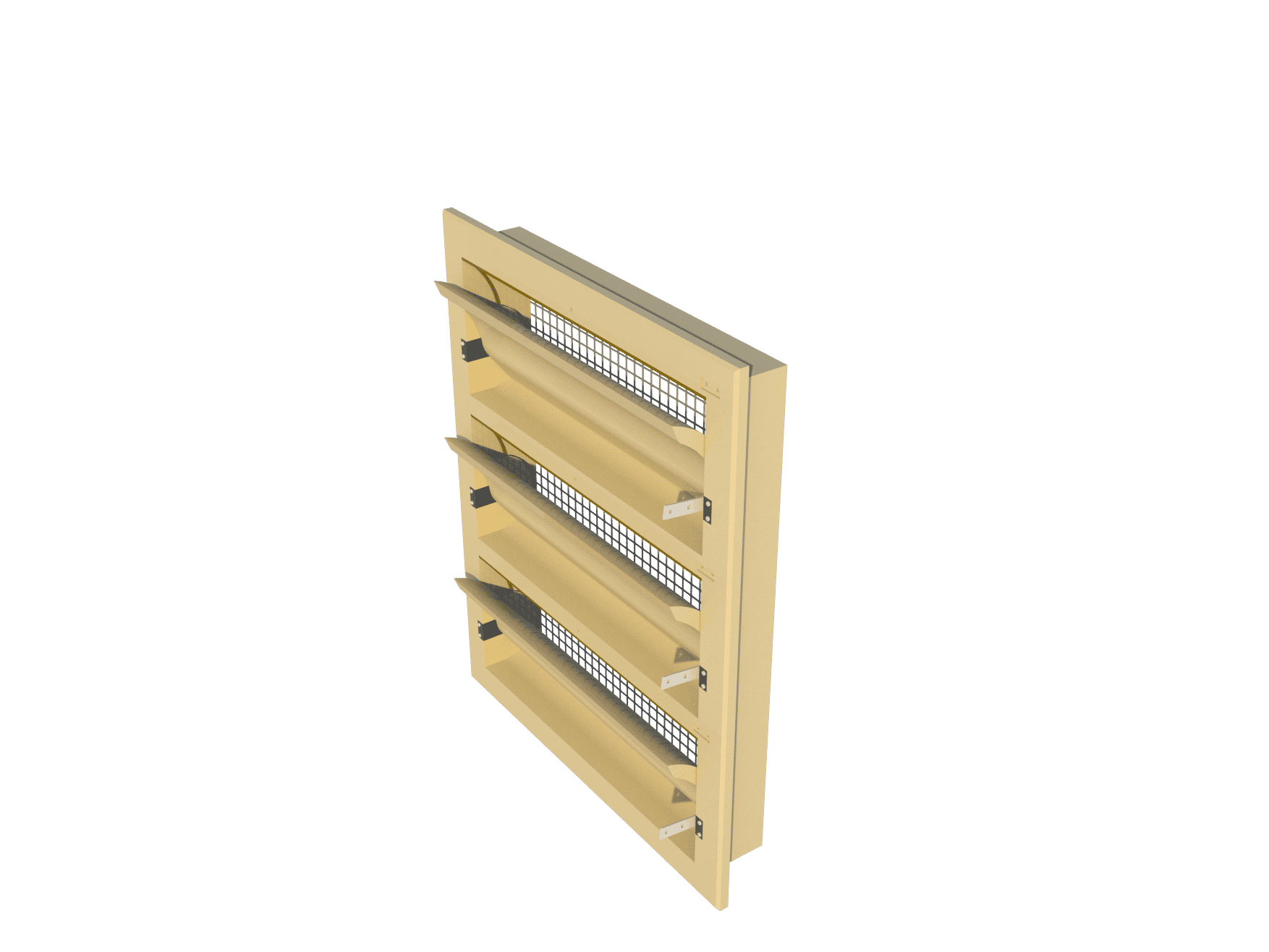

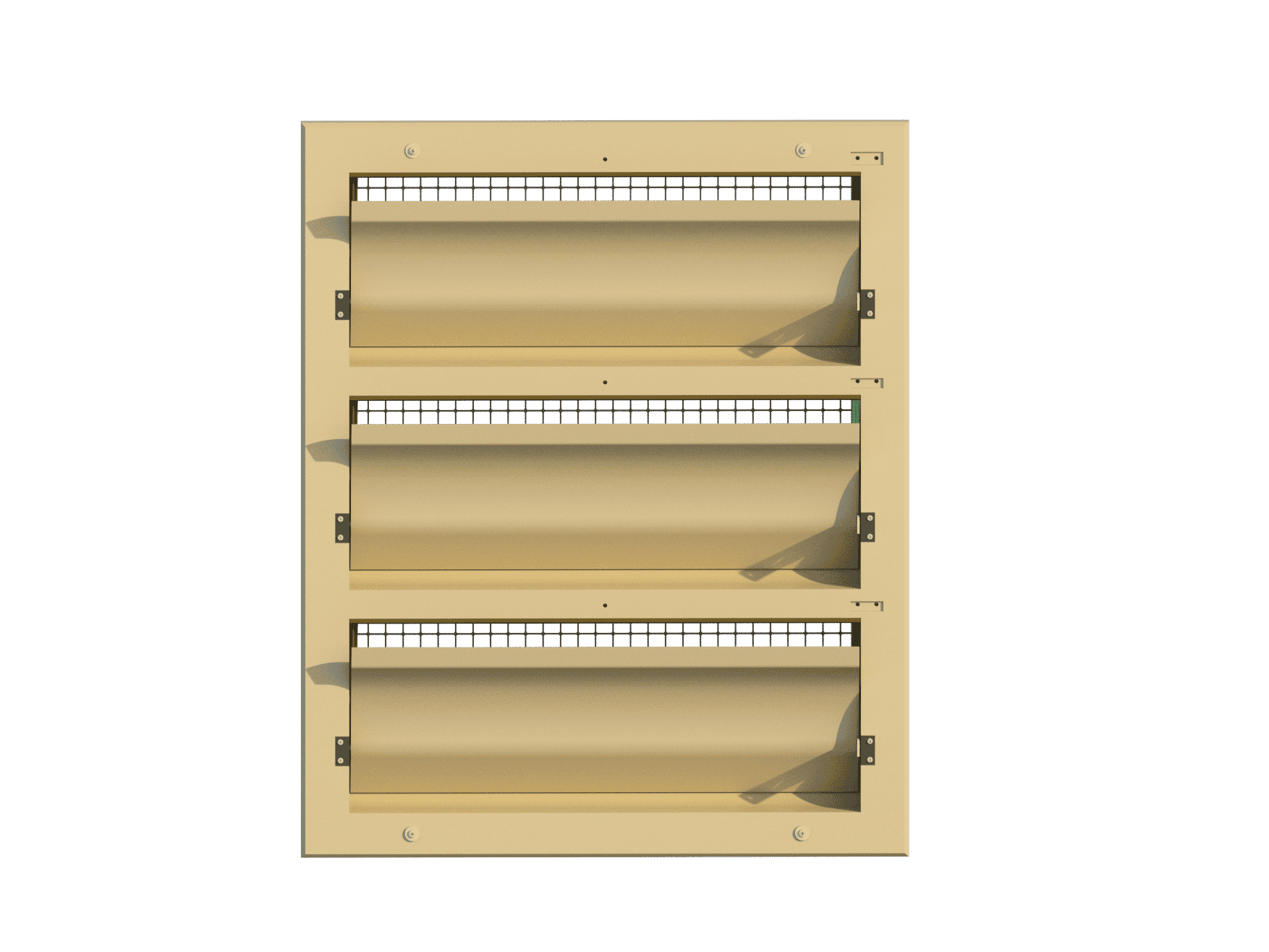

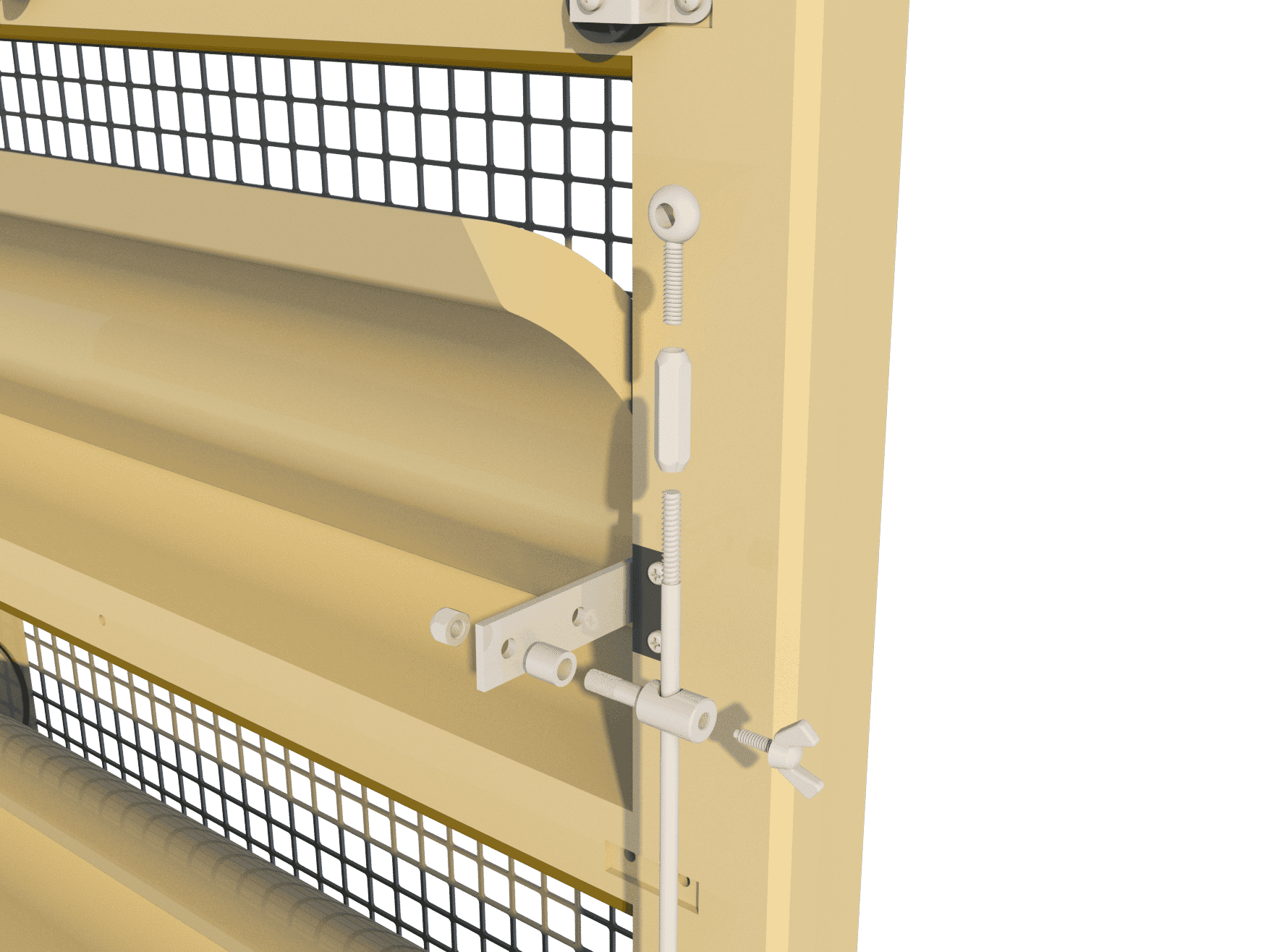

This air inlet valve consists of three single model 145 inlets built on top of each other. With three middle hinged inner valves the air will be divided and also flows underneath the valves when they are opened over 35%. The inlet valve is controlled by means of three stainless steel side arms connected by a stainless steel rod. This inlet is executed with curved inner valves so when it is opened for maximum ventilation air is also guided downwards to the animals. (also available in self-closing version)
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
145-Triple-Series | 3450 | 6150 | 8700 |
Product information:
Run | 11cm / 4.3 Inch |
Force | 6 kg / 58.8 Newton |
Number / pallet | 16 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 5.7 kg / 12.6 Lbs |
Volume / per box | 8 |
