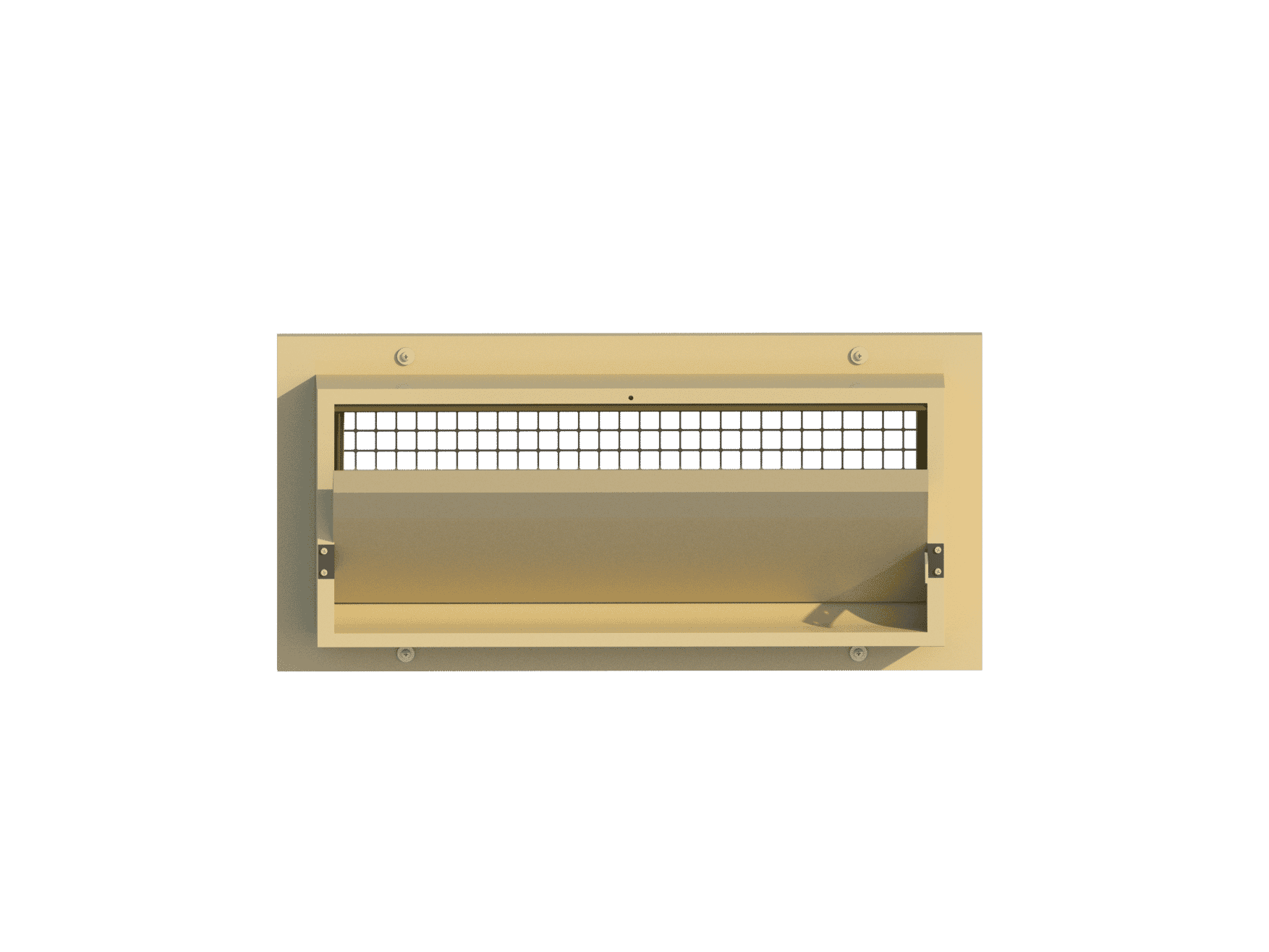

145-FR Air Inlet

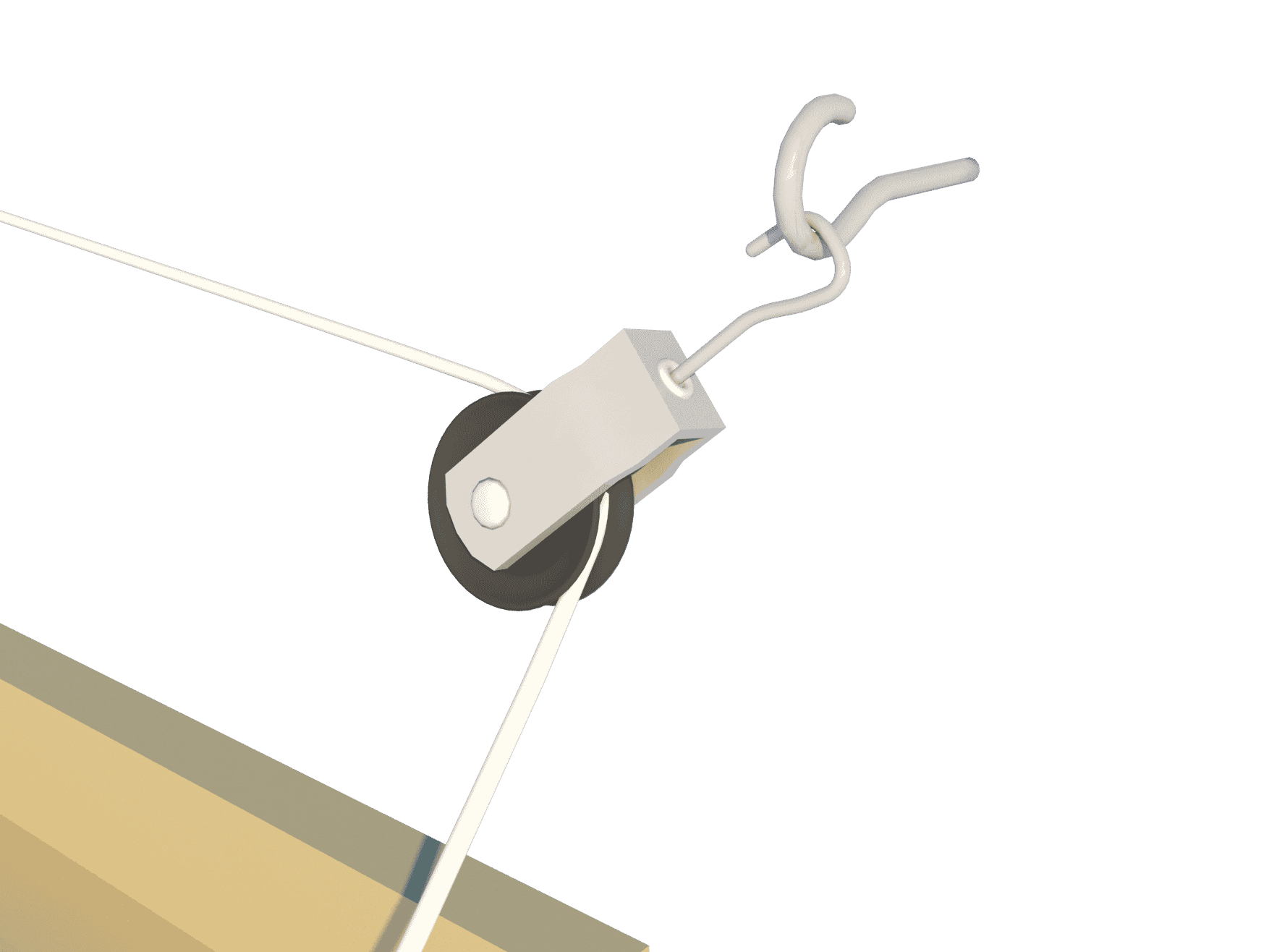

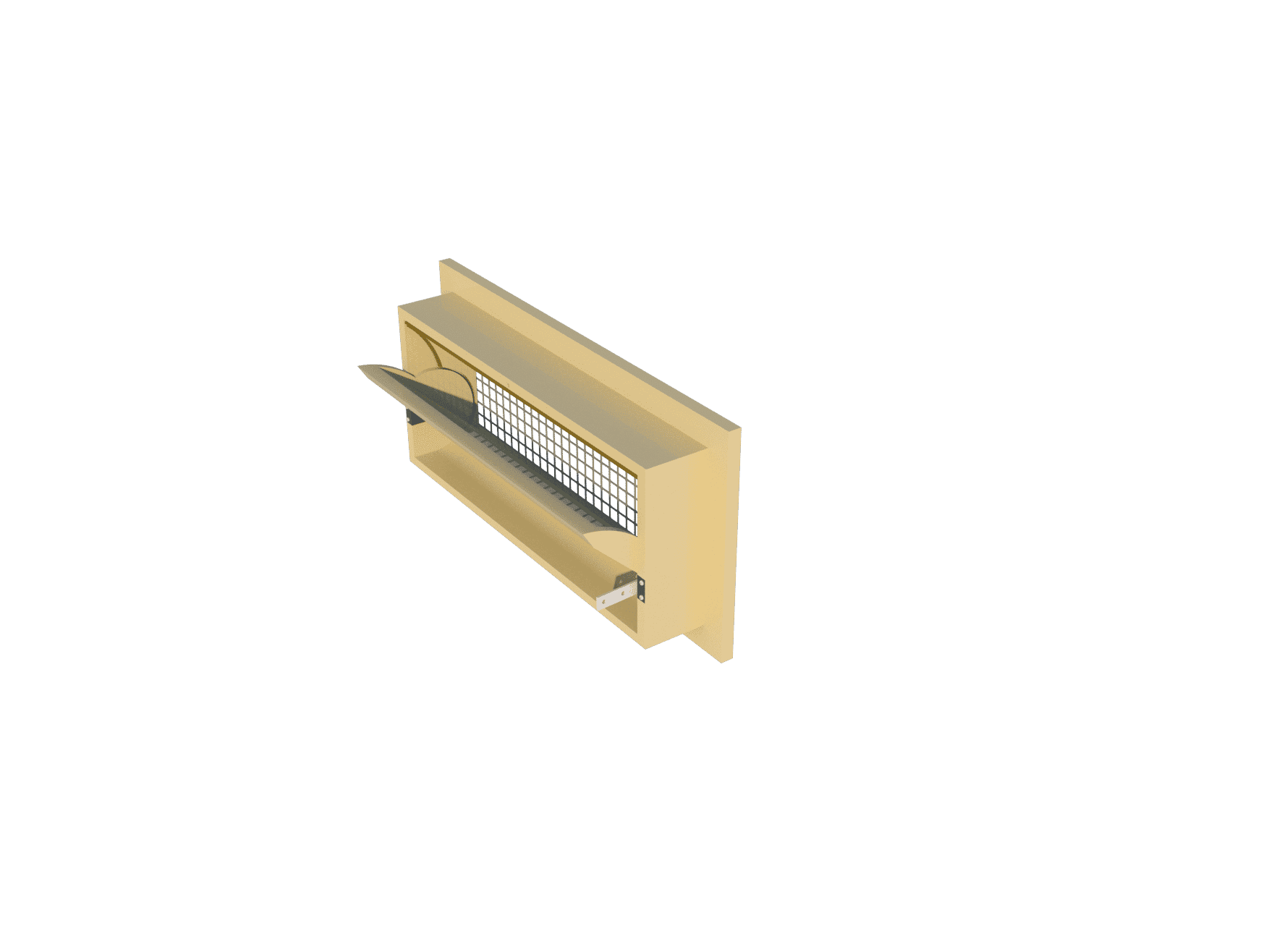

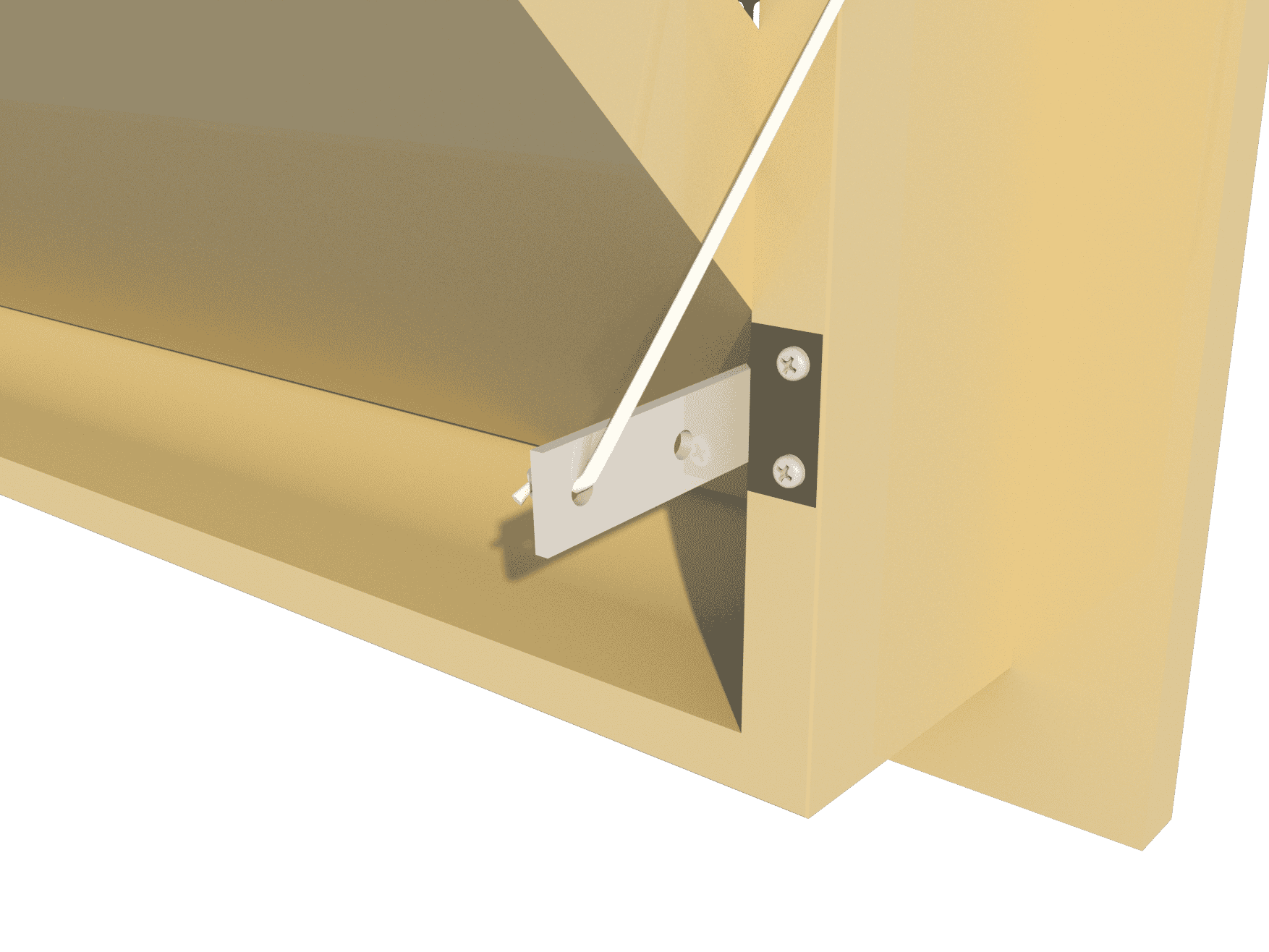

This inlet has a flange on the backside of the house so it can be built onto the wall instead of being built in the wall. With a middle hinged inner valve the air will be divided and also flows underneath the valve when it is opened over 35%. The inlet is controlled by means of a stainless steel side arm. This inlet is executed with a straight inner valve so when it is opened for maximum ventilation air is not guided downwards to the animals. (also available in self-closing version)
Capacity in m3/hour at a static pressure of:
Model | 10Pa | 20Pa | 40Pa |
|---|---|---|---|
145-Series | 1450 | 2050 | 2900 |
Product information:
Run | 11 cm / 4.1 Inch |
Force | 2 kg / 19.6 Newton |
Number / pallet | 52 (1.20 x 0.80 x 2.40 m) |
Weight / per inlet | 2.2 kg / 4.9 Lbs |
Volume / per box | 26 |
